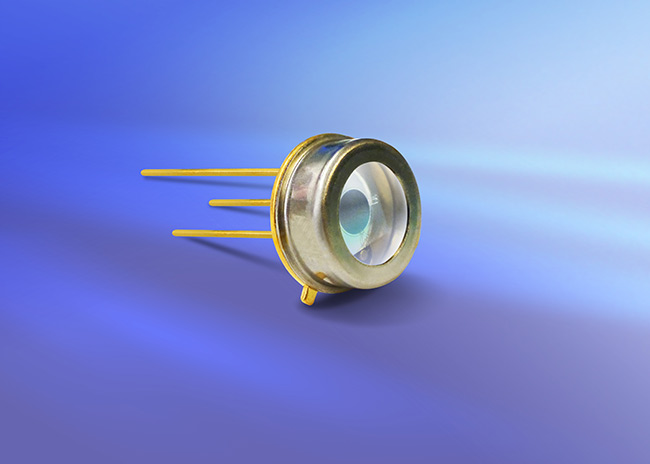

Request InfoOpto Diode CorporationThe SXUV5 extreme UV photodiode from Opto Diode Corp. features a circular active area of 2.5 mm in diameter. The device has responsivity in the 1- to 190-nm wavelength region and is specially designed to be highly stable over long periods of time when exposed to high-intensity EUV energy. A windowless TO-5 package housing allows responsivity at wavelengths <150 nm. Other features include shunt resistance of 20 mΩ and reverse breakdown voltage of 5 to 20 V. Capacitance is 500 to 1500 pF, and response time is from 1 to 2 nsec. Storage and operating temperatures range from...See full productRelated content from Photonics MediaPRODUCTSPhotonics.com 2/28/2023Piezo Objective ScannerThe Nano Scan OP800 piezo objective scanner from Prior Scientific Inc. features a mechanical design and integral capacitive feedback for positioning accuracy. Stiff construction allows the...Vision Spectra Autumn 2024 IssueConfocal SensorsThe Gocator® 4000 Series from LMI Technologies are coaxial line confocal sensors for semiconductor, consumer electronics, and EV battery applications. The sensors provide high-speed,...BioPhotonics Jan/Feb 2025 IssueConfocal Raman MicroscopeThe Apollo M from CRAIC Technologies is a confocal Raman microscope for applications such as materials research, nanotechnology, pharmaceuticals, biomaterials, and semiconductor analysis. The...BioPhotonics Jan/Feb 2024 IssueDirect-Drive Rotation StagesThe V-622, V-623, and V-625 from PI are high-performance rotary stages equipped with frictionless electromagnetic torque motors and precision ball bearings. The V-62x family comes with table...ARTICLESPhotonics.com 8/11/2023Edmund Opens Florida Laser Optics Center: Week in Brief: 8/11/23Edmund Optics established a 34,000-sq-ft laser optics center in Oldsmar, Fla. The center is dedicated to manufacturing optical components with high laser damage thresholds from the ultraviolet to the...Photonics Spectra September 2024 IssueTopological Platform Boosts Comb Efficiency, End Use PotentialThe well-defined spacing between frequency spikes makes the frequency comb a valuable light measurement tool. Just as the evenly spaced lines on a ruler provide a way to measure distance, the evenly...Photonics.com 8/6/2024Chiral Perovskite Interface Enables Spin in Conventional LEDsAlthough spintronic devices can process an order of magnitude more information than conventional electronics, current efforts to realize commercial spintronic devices are limited, due to the...Photonics.com 9/13/2023Ocean Insight Names President; Bluglass, TeraXion Add to Executive Teams: People in the News: 09/13/2023ZEISS CFO Christian Müller will step down from the executive board at the end of this month. Company president and CEO Karl Lamprecht will temporarily take over CFO duties. Christian...PHOTONICS HANDBOOK ARTICLESPhotonics HandbookAspheric Lenses: Design ConsiderationsAspheric surfaces are powerful tools that combine the optical corrections of multiple lenses into a single element (Figure 1) and affect performance in ways that spherical optics cannot. For example,...Photonics HandbookOptical Delay Lines: Key to Time-Resolved MeasurementsOne of the most critical elements of any time-resolved spectroscopy and dynamics experiment is the optical delay line. A typical optical delay line consists of a retroreflector or folding mirrors on...Photonics HandbookFlat Optics: Considerations When BuyingFlat optics generally perform three main functions: They transmit light (windows), reflect light (mirrors), and fold light (prisms). While most optical manufacturers make spherical and flat optics, a...Photonics HandbookPhotomultipliers: Low-Light, High-Speed SpecialistsThe applications where rapid detection of light is a must are many. They include a wide variety: semiconductor inspection, gene sequencing, oil well logging and high-energy physics. The reasons for...WHITEPAPERSPhotonics.com 9/16/2024Antireflection Coatings for Space ApplicationsSpace can be a harsh environment for optical coatings. Optimax has successfully provided antireflection (AR) coatings for a wide range of space applications. This paper outlines the results of...Photonics.com 8/1/2023Deposition Sciences Inc. Dichroic Edge FiltersShort wave pass and long wave pass filters are a specialty of ours. Learn more...Photonics.com 8/1/2023Deposition Sciences Inc. Notch FiltersWe are pros at designing, developing, and manufacturing notch filters!Photonics.com 8/1/2023Deposition Sciences Inc. Bandpass DatasheetWideband or narrowband filters from the VIS to MWIR.WEBINARSPhotonics.com 11/8/2023Next-Generation Instrumentation for Optical Control and CharacterizationThe characterization and control of optical systems with multiple stand-alone pieces of test equipment often presents difficult challenges that lead to lower stability, more noise, and increased...Photonics.com 9/5/2024Manufacturing-Aware Design of Photonic Integrated CircuitsPhotonic integrated circuits (PICs) are a rapidly growing technology due to the unquenchable demand for high bandwidth communications in the data center. As the industry grows, new applications are...Photonics.com 12/10/2024Fused Silica Step Index Fibers: Advanced Preform and Fiber MetrologyThis webinar discusses advanced preform and fiber measurement techniques for specialty fibers, with a particular focus on fibers produced using the POD (plasma outside deposition) process. In this...Photonics.com 1/19/20233D Optical Metrology: Capabilities for a New Era3D optical methods have come a long way from the early stereo viewers and multiangle sliding images that existed more than a century ago. As measurement tools, these methods have in the past 40 years...PHOTONICS DICTIONARY+ TERMSPhotonics Dictionarychemical vapor deposition equipmentChemical vapor deposition (CVD) equipment refers to a class of specialized apparatus used in the process of chemical vapor deposition, a technique for depositing thin films of various materials onto...Photonics Dictionarygermanium crystalGermanium crystal refers to a crystalline form of the element germanium (Ge), which is a metalloid and semiconductor commonly used in various electronic and optical applications. Germanium crystals...Photonics Dictionarymicromachining laser systemsMicromachining laser systems are advanced tools that use laser technology to perform highly precise material removal and modification at micro and nanoscales. These systems enable the fabrication of...Photonics Dictionaryterahertz spectrometerA terahertz spectrometer is a scientific instrument used to measure and analyze the properties of materials in the terahertz frequency range, typically spanning from about 0.1 to 10 terahertz (THz),...VIDEOSPhotonics.com 11/7/2024New Semiconductor Technology Center Comes to Albany and a Flurry of Mergers and AcquisitionsNY CREATES’ Albany NanoTech Complex will be the site of a new National Semiconductor Technology Center. The University of Tokyo has found a way to make Raman spectroscopy 100 times faster. The...Photonics.com 9/25/2024Intel Draws Interest from Tech Giants after Flurry of MovesIntel is making headlines after landing a huge deal with Amazon, receiving a $3B grant from the U.S., and announcing moves to make its foundry business its own entity. All this and more acquisitions...Photonics.com 10/3/2022Blackstone NEY Ultrasonics CleanveyorBlackstone-NEY CleanVeyor Ultrasonic parts washer utilizes a combination of spray, immersion, and ultrasonic cleaning technologies and has proven successful in achieving Six Sigma consistency in a...Photonics.com 5/14/2024Aperture Optical Sciences Inc. 2024Meet AOS! Join us in our exploration to become the best makers of optics in the world.PHOTONICS BUYERS' GUIDE CATEGORIESGermanium CrystalsGermanium crystal refers to a crystalline form of the element germanium (Ge), which is a metalloid and semiconductor commonly used in various electronic and optical applications. Germanium crystals...Cable Management ProductsFilm MasksLight-Emitting Diode ChipsCOMPANIESPhotonics Buyers' GuideOpto Diode CorporationOpto Diode Corporation (Camarillo, CA), an ITW Company, delivers industry-leading sensors, photodiodes, IR detectors, photonic modules, assemblies, and LEDs. Available in standard and custom designs,...Photonics Buyers' GuideFOCtek Photonics Inc.FOCtek provides customers with all types of custom manufactured lenses, Precision Optical Components, Polarizing Optics, Prisms, Filters, Coatings, Optical Systems, Crystals, Nonlinear Crystals,...Photonics Buyers' GuideOhara CorporationOHARA manufactures more than 130 environmentally safe optical glass types, free of both lead and arsenic. More than 300 tons of optical glass are melted per month, available in the following forms of...Photonics Buyers' GuideLaCroix Precision OpticsThe LaCroix name is synonymous with quality precision optics. Since 1947, three generations of family leadership have guided LaCroix Precision Optics to become the premier precision optics...
