36 products

Photonics Products

Clear All Filters xShanghai Optics Inc. x

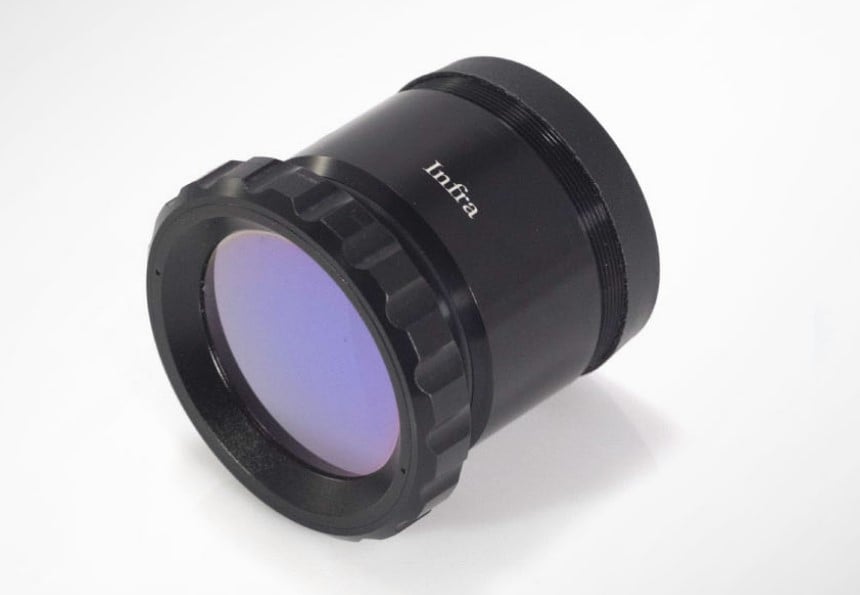

IR Lenses
IR Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
Custom Microscope Objective Lenses
Custom Microscope Objective Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
Germanium Lenses
Germanium Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Diameter / Dimension: 2 - 100mm
  • Bevel: protective bevel
  • Flatness: 1/2 Lambda
  • Parallelism: < 3 arc min

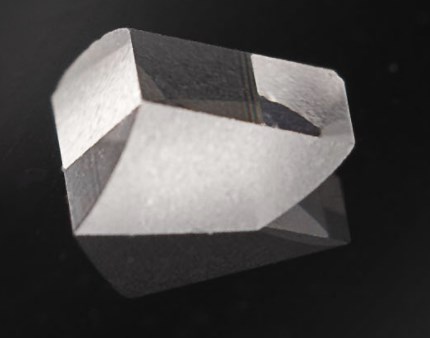

Micro Prism
Micro Prism
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Prisms & Wedges
  • 90 Degree Deviation Tolerance: Precision: <2 arcseconds
  • 90 Degree Deviation Tolerance: Standard: < 5 arcseconds
  • Flatness: Precision: l/8 l @632.8nm
Microlens Array
Microlens Array
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Other
  • Bevel: 0.2mm typical
  • Centration: ±0.04mm
  • Diameter: +0, -0.1mm
Microspheres
Microspheres
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Spherical Lens
  • Diameter Tolerance: ±1 µm
  • Spherical Tolerance: ≤ λ/4 at 587.6 nm
  • Wavelength: 450-2300 nm, uncoated

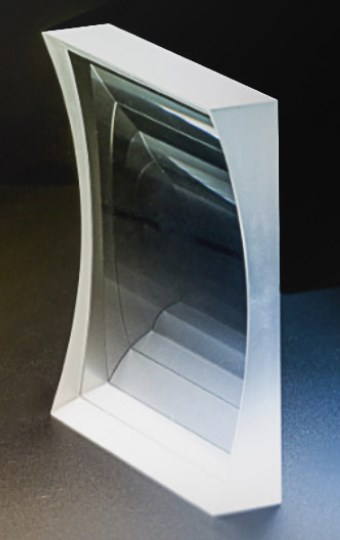

Cylindrical Lenses
Cylindrical Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Cylindrical Lens
  • Angle: +/-5″
  • Clear Aperture: >90% of central dimension
  • Focal Length: +/-1%
BK7 Windows
BK7 Windows
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Windows
  • Clear Aperture: >85%
  • Diameter Tolerance: +0.0, -0.05mm
  • Irregularity (fringe): l/10

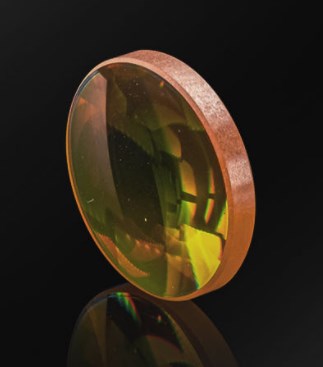

Zinc Selenide (ZnSe) Lenses
Zinc Selenide (ZnSe) Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Other
  • Chamfer: 0.35mm at 45° (typical)
  • Concentricity: < 0.05mm
  • Dimensional Tolerance: + 0.00mm, - 0.25mm

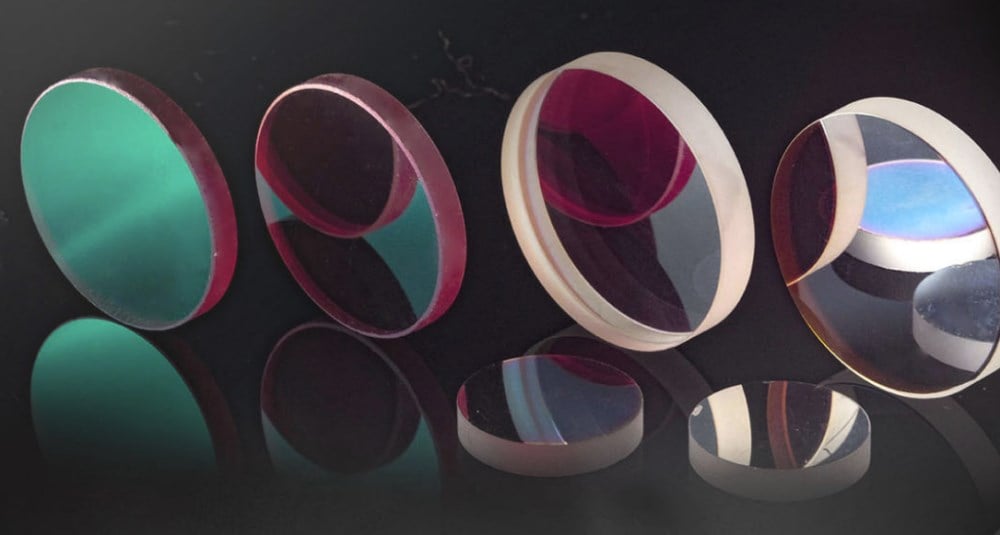

Laser Line Filter
Laser Line Filter
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Filters
  • Filter Category: Other
  • Beam deviation: <11 arc seconds
  • Diameter Tolerance: +0/-0.1mm
  • Surface Quality: 60/40 scratch dig

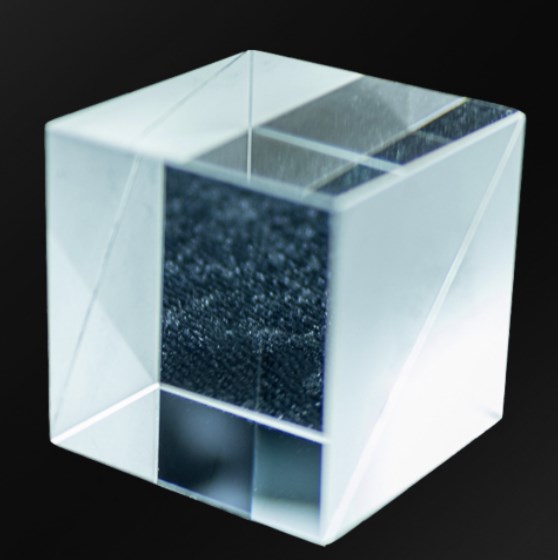

Laser Polarizing Beamsplitter Cube
Laser Polarizing Beamsplitter Cube
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Beamsplitters
  • Asymmetry: 1°
  • Beam Deviation: 1 arcmin
  • Dimensions: +0.1 mm
BK7 Spherical Lens
BK7 Spherical Lens
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Spherical Lens
  • Chamfer: 0.15mm at 45° typical
  • Concentricity: 0.05mm
  • Dimensional Tolerance: + 0.00mm, – 0.1mm

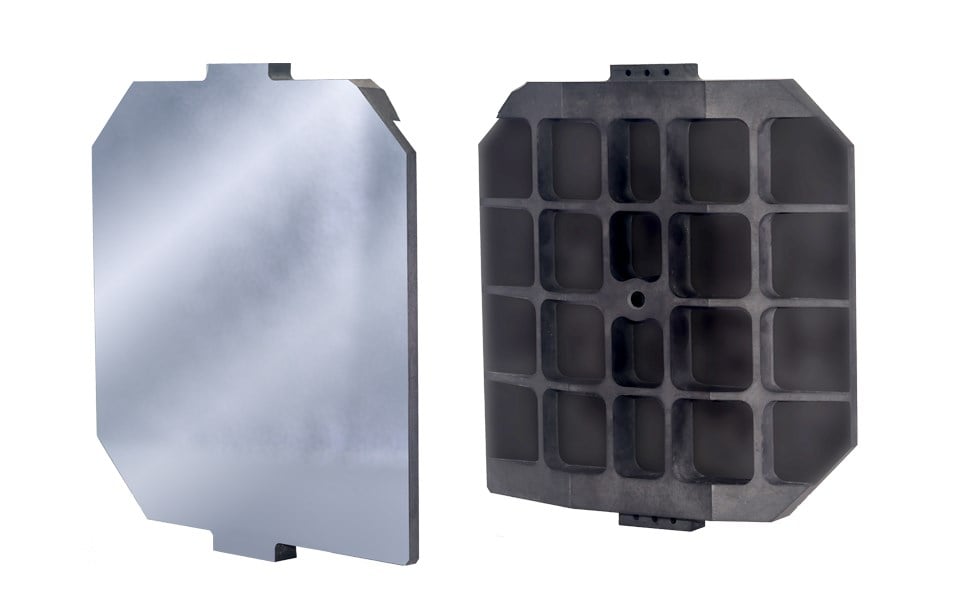

Silicon Carbide Mirrors
Silicon Carbide Mirrors
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Mirrors
  • Mirror Category: Other
  • Size: 25 mm – 800 mm
  • Surface Flatness: up to λ/100 rms
  • Surface Shape: Flat (typical), Sphere, Aspheric

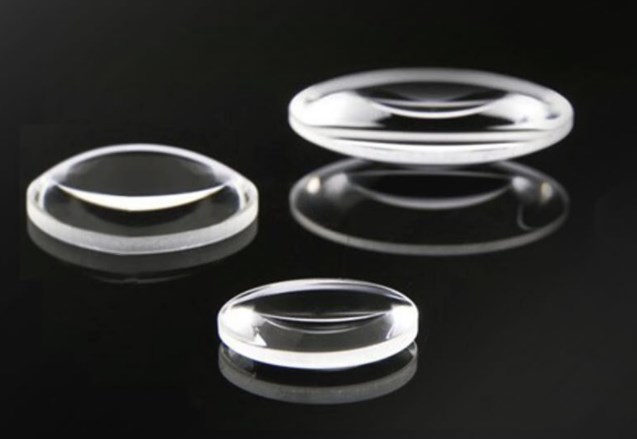

Achromatic Lenses
Achromatic Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Other
  • Diameter Tolerance: ± 0.03mm
  • Focal Length Tolerance: ± 0.5%
  • Radius: ± 0.3%
Beam Expanders
Beam Expanders
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Other

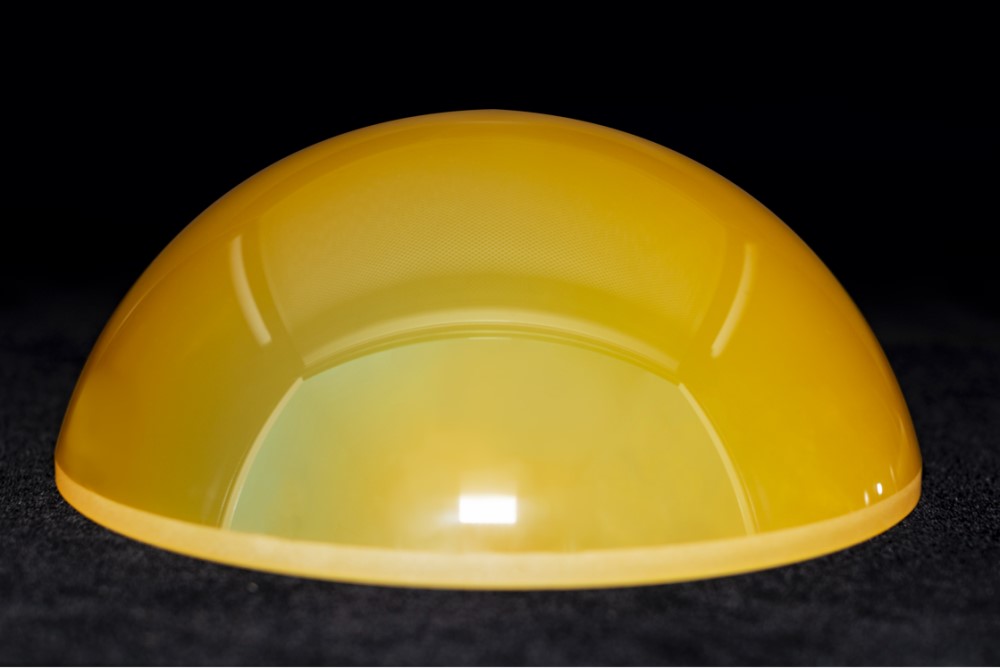

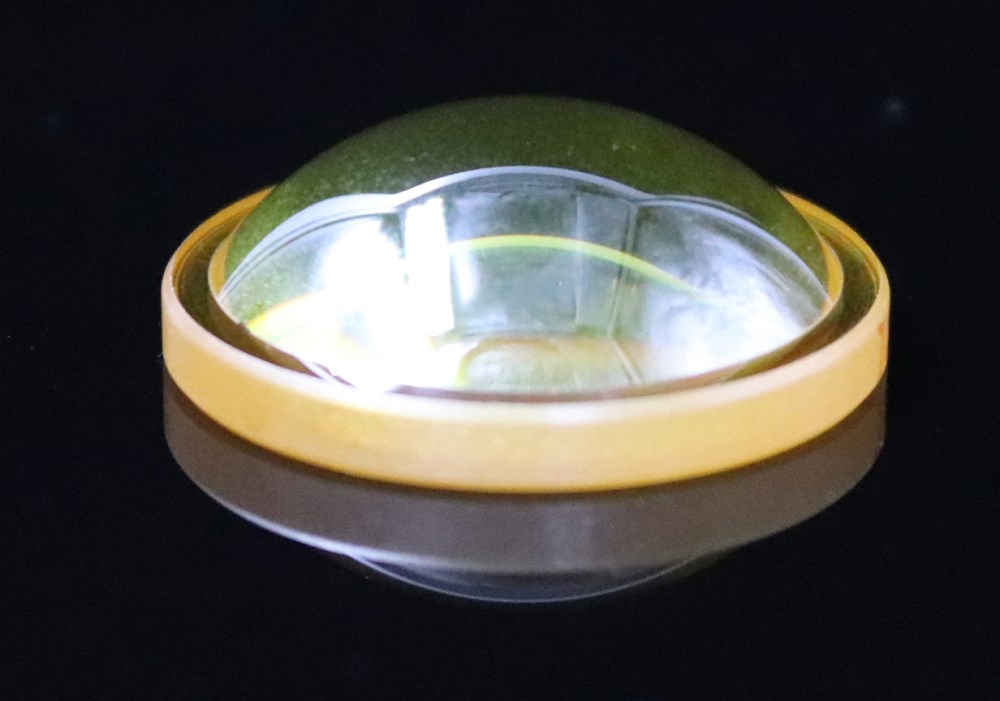

Custom Optical Domes
Custom Optical Domes
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Domes
  • CaF2: 5 - 450 mm
  • Germanium: 5 - 200 mm
  • Sapphire: 5 - 300 mm

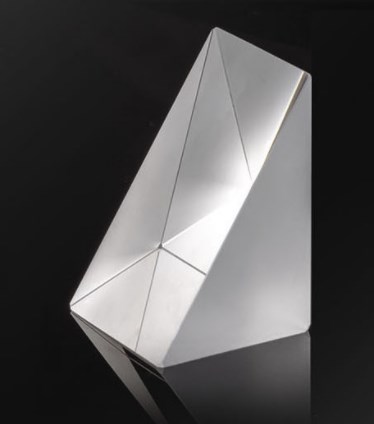

Right-Angle Prism
Right-Angle Prism
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Prisms & Wedges
  • Clear Aperture: >90%
  • Dimension Tolerance: +0.0, -0.1 mm
  • Flatness: l/4 l @632.8 nm

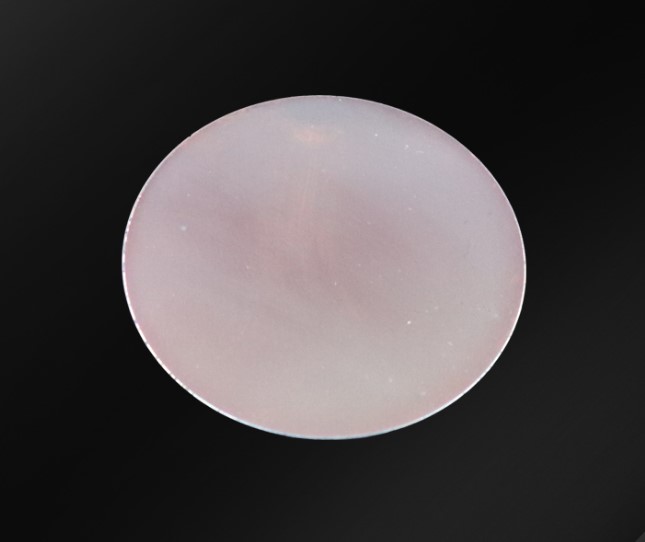

Metallized Sapphire Windows
Metallized Sapphire Windows
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Windows
Raman Filter
Raman Filter
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Filters
  • Angle of Incidence: 0.0 +/- 2.0
  • Clear Aperture: >80%
  • Edge Steepness: 0.5% of the laser wavelength
Dichroic Filters
Dichroic Filters
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Filters
  • Filter Category: Other
  • Angle of Incidence: 45°
  • Clear Aperture: >95%
  • Dimensions: 25.2mm*35.6mm*1.1 mm
Optical Mirrors
Optical Mirrors
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Mirrors
Off-Axis Parabolic Mirror
Off-Axis Parabolic Mirror
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Mirrors
  • Diameter / Dimension: 0 - -0.2mm
  • Focal Length Tolerance: ±1%
  • Off-Axis Distance Tolerance: mm +6, -0
  • Surface Accuracy: 1/10 λ rms

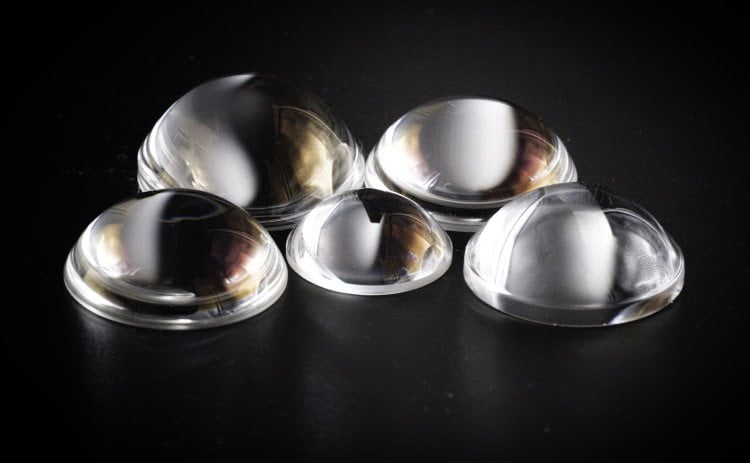

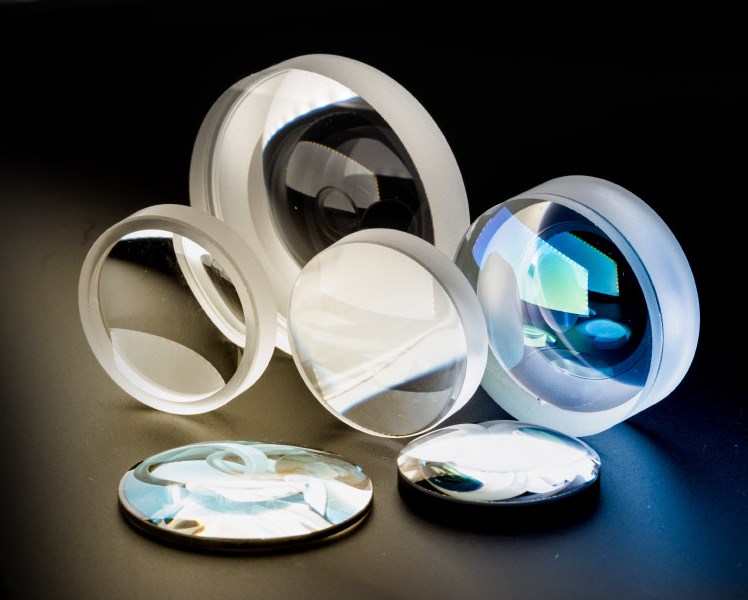

Aspheric Lenses
Aspheric Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Diameter / Dimension: 1 - 1000mm
  • Lens Category: Aspherical Lens

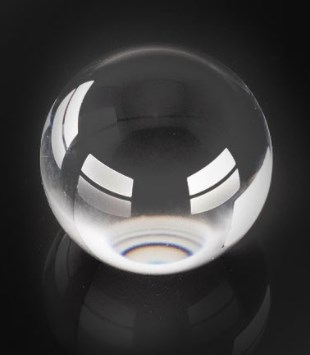

Ball Lenses
Ball Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Other
  • Diameter: 2～50mm
  • Diameter Tolerance: +/-0.05mm
  • Scratch/Dig: 20/10

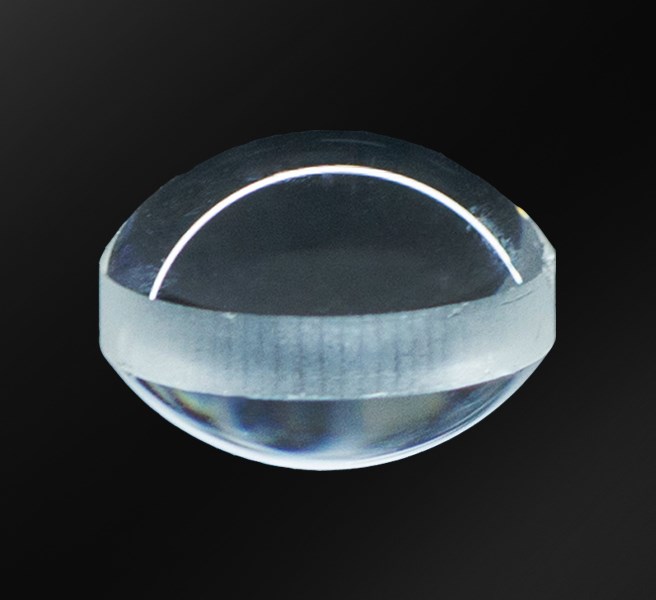

Biconvex Lenses
Biconvex Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Spherical Lens
  • Centration: <1′
  • Design Wavelength: 546mm
  • Diameter Tolerance: +/-0.05mm

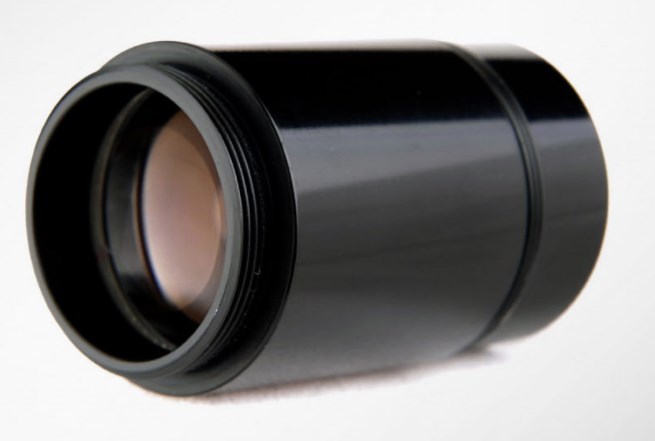

Collimating Lenses
Collimating Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Other

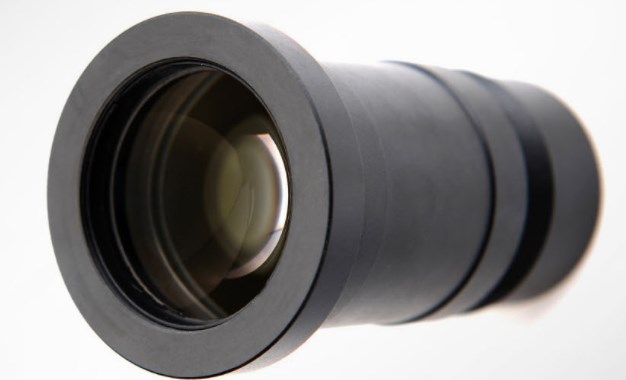

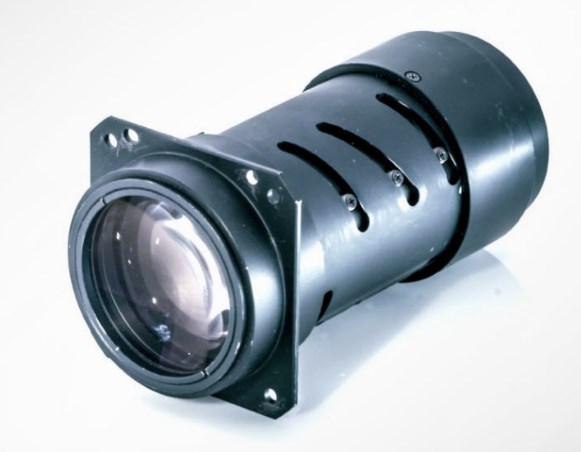

Digital Projection Zoom Lenses
Digital Projection Zoom Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Other
  • Field Angle: 56°
  • Focal Length: 19.3-22.6mm
  • Imager Circle: 21.5mm

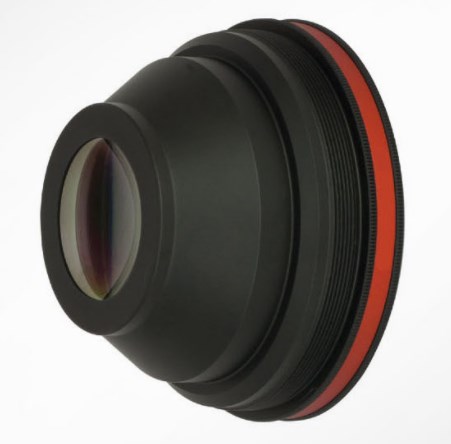

F-Theta Lenses
F-Theta Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Other
  • Custom Optical Coating: UV to visible to infrared
  • Distortion (Max.): <.25%
  • Focal Length: from 63mm to 635mm
Germanium Infrared (IR) Aspheric Lenses
Germanium Infrared (IR) Aspheric Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Diameter / Dimension: 5 - 400mm
  • Lens Category: Aspherical Lens
  • Aspherical Accuracy: 5-20mm: Rt≤0.3µm, Ra≤0.03µm, 20-50mm: Rt≤0.5µm, Ra≤0.05µm, 50-200mm: Rt≤0.8µm, Ra≤0.08µm, 200-400mm: Rt≤1.2µm, Ra≤0.15µm
  • Centering (Arcmin): 5-20mm: ≤0.5µm, 20-50mm: ≤0.8µm, 50-200mm: ≤1.0µm, 200-400mm: Rt≤2µm
  • Coating Wavelength: 8-12µm
Plano Concave Lenses
Plano Concave Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Spherical Lens
  • Center Thickness Tolerance: +/-0.05 mm
  • Centration(arc min): 3′
  • Dimension Tolerance: +/-0.05mm

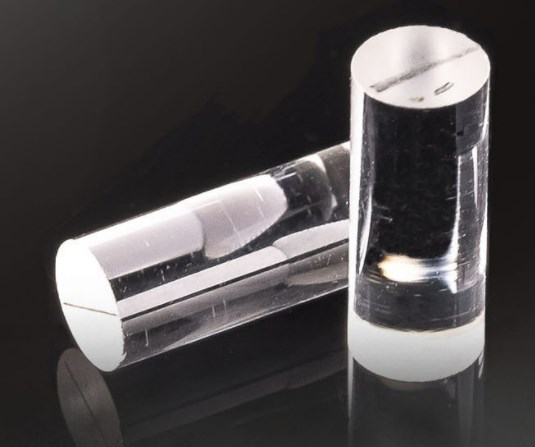

Rod Lens
Rod Lens
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Cylindrical Lens
  • Angle: +/-5″
  • Clear Aperture: >90% of central dimension
  • Focal Length: +/-1%
Sapphire Spherical Lenses
Sapphire Spherical Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Spherical Lens
  • Clear Aperture: >90% of central dimension
  • Focal Length: +/-1%
  • Shape: Spherical
Silicon Infrared (IR) Aspheric Lenses
Silicon Infrared (IR) Aspheric Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Diameter / Dimension: 5 - 30mm
  • Lens Category: Aspherical Lens
  • Centering (Arcmin): 0.5µm
  • Coating Wavelength: 3-5µm
  • Surface Accuracy: 5-20mm: Rt≤0.3µm, Ra≤0.03µm, 20-30mm: Rt≤0.5µm, Ra≤0.05µm
Zinc Selenide (ZnSe) Infrared (IR) Aspheric Lenses
Zinc Selenide (ZnSe) Infrared (IR) Aspheric Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Diameter / Dimension: 5 - 400mm
  • Lens Category: Aspherical Lens
  • Centering (Arcmin): 5-20mm: ≤0.5µm, 20-50mm: ≤0.8µm, 50-200mm: ≤1.0µm, 200-400mm: Rt≤2µm
  • Coating Wavelength: 8-12µm
  • Surface Accuracy: 5-20mm: Rt≤0.3µm, Ra≤0.03µm, 20-50mm: Rt≤0.5µm, Ra≤0.05µm, 50-200mm: Rt≤0.8µm, Ra≤0.08µm, 200-400mm: Rt≤1.2µm, Ra≤0.15µm

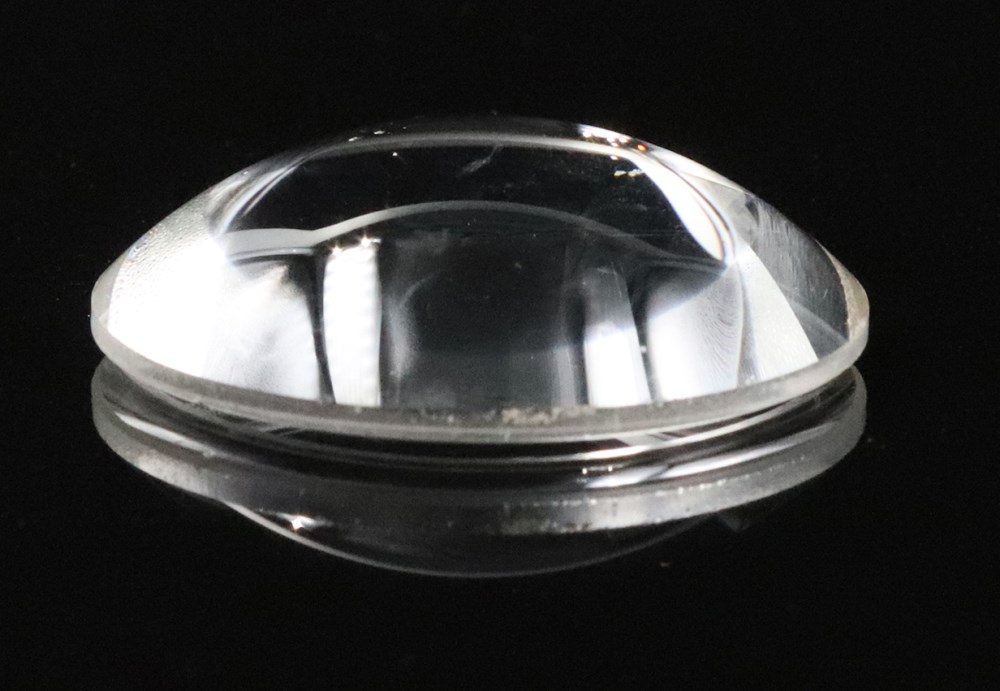

Plano Convex Lenses
Plano Convex Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Spherical Lens
  • Diameter Tolerance: 0.03mm
  • Focal Length Tolerance: 0.5%
  • Radius: 0.3%

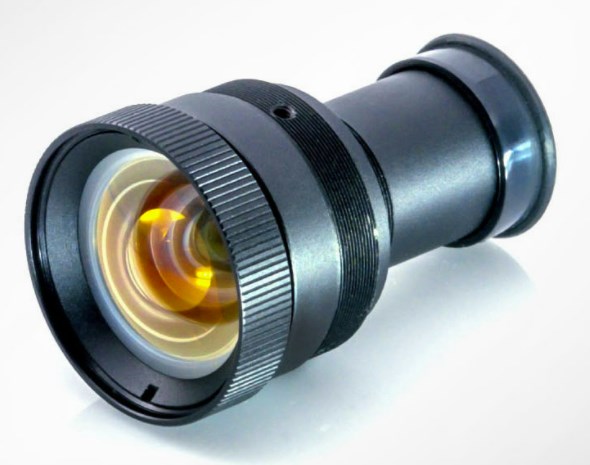

Projection Lenses
Projection Lenses
Shanghai Optics Inc.
  • Category: Optics & Optical Fabrication / Optics
  • Type: Lenses
  • Lens Category: Other
  • Focal Length: 12.5mm
  • Imager Circle: 18mm
  • Imager Format: 0.7″ 1280X720
