223 products

Optomechanics & Positioning

Compare 223 products from verified Optomechanics & Positioning suppliers in our comprehensive photonics marketplace.

Clear All Filters xOptomechanics & Positioning x

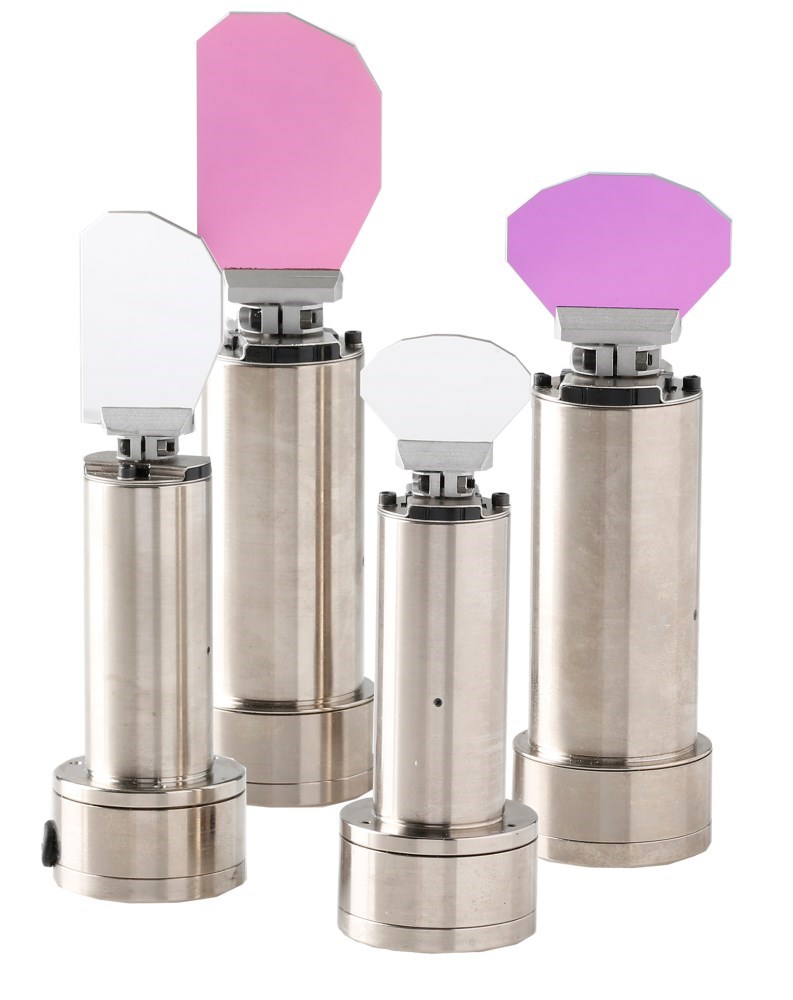

Dual-Axis Galvanometer Scan Heads
Dual-Axis Galvanometer Scan Heads
Thorlabs Inc.
  • Category: Optomechanics & Positioning / Galvanometers
  • Type: 2 Axis
  • Max. Beam Diameter: 45mm
  • Max. Scan Angle X (degrees): 22.5
  • Max. Scan Angle Y (degrees): 22.5
  • Small Step Response (µs): 1200
  • Repeatablility (µrad): 10
  • Linearity (%): 99.9
  • Control Electronics: Analog Servo Amplifiers
  • Gain Drift: 50 ppm/°C
  • Mirror Substrate: Fused Silica/SiC/Si
Premier Product
VantagePro Galvanometer Scanners
VantagePro Galvanometer Scanners
Thorlabs Inc.
  • Category: Optomechanics & Positioning / Galvanometers
  • Type: 1 Axis
  • Repeatablility (µrad): 20
  • Linearity (%): 99.88
  • Overall Height (no mirror): 35.7mm
  • Weight: 0.45kg
  • Housing Diameter: 9.47 mm
  • Max. Beam Diameter: 4 mm or 5 mm Available
  • Mirror Coatings Available: Protected Silver, Nd:YAG
Premier Product

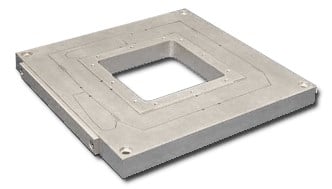

Nano-Bio
Nano-Bio
Mad City Labs Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Nanopositioning Stage
  • Max. Load: 0.5kg
  • Control: Closed Loop
  • Stability: High
  • Type: Low profile, two axis
Premier Product

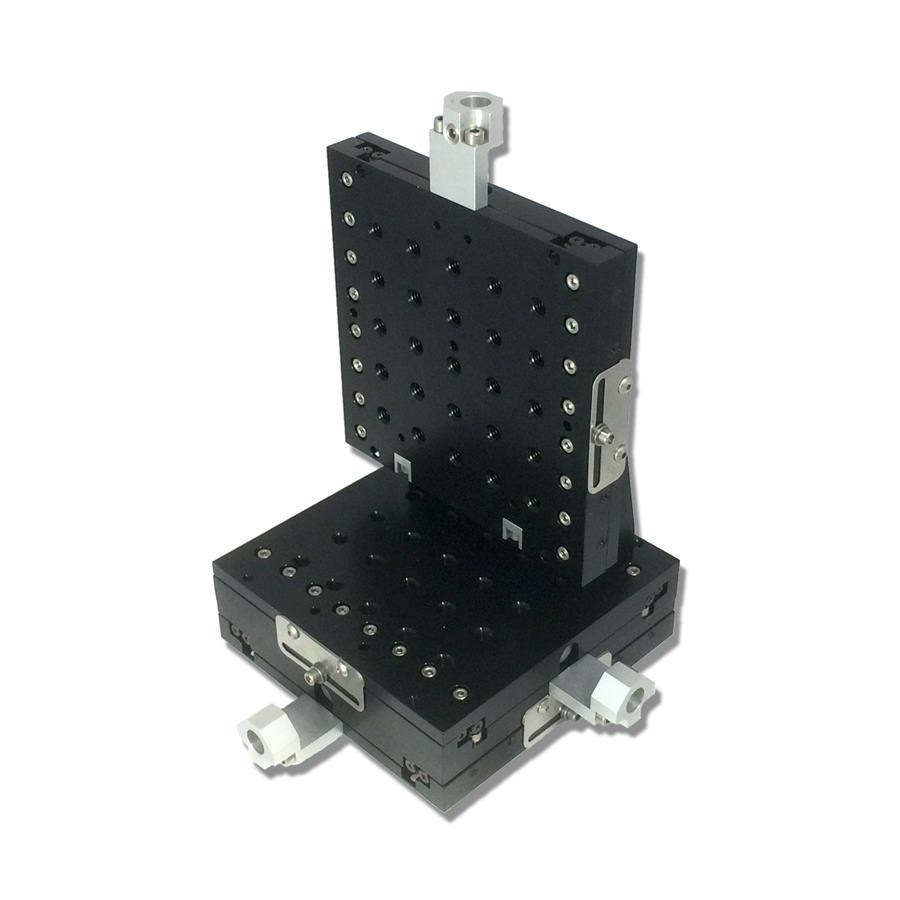

MicroStage-BX
MicroStage-BX
Mad City Labs Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Nanopositioning Stage
  • X-Axis Travel Length: 25mm
  • Y-Axis Travel Length: 25mm
  • Stage Type: Manual
  • Body Material: Aluminum
  • Graduation: 10 µm
  • Vernier graduations: 1 µm
Premier Product
Rotary Positioners
Visit WebsiteRotary Positioners
SmarAct Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Rotation Stage
  • Max. Load: 2.5kg
  • Max. Rotation Speed (degrees/s): 45
  • Stage Type: Motorized
  • Non-Magnetic Materials: Available
  • UHV Compatibility: Yes
Premier Product
3SAE PentaPod Multi-Axis Positioner
Visit Website3SAE PentaPod® Multi-Axis Positioner
3SAE Technologies Inc.
  • Category: Optomechanics & Positioning / Hexapods
  • Type: Hexapod
Polaris 5-Axis Kinematic Mounts
Polaris® 5-Axis Kinematic Mounts
Thorlabs Inc.
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Mounts
  • Cleanroom Compatible: Yes
  • Optic Diameter: Ø1/2"
  • Tip/Tilt Range: ±4°
Quick-Connect Translation Stages, 50 mm Travel
Quick-Connect Translation Stages, 50 mm Travel
Thorlabs Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 81.9kg
  • Mass: 0.7kg
  • Height: 23mm
  • X-Axis Travel Length: 50mm
  • Stage Type: Manual
  • Angular Deviation: <150 µrad
  • Bearing Type: Crossed Roller Bearings
  • Orthogonality: <25 µrad (XY Stacked)
5 mm Linear Stage with Piezoelectric Inertia Drive
5 mm Linear Stage with Piezoelectric Inertia Drive
Thorlabs Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 1kg
  • Mass: 32g
  • Height: 6.5mm
  • X-Axis Travel Length: 5mm
  • Max. Linear Speed: 10mm/s
  • Stage Type: Motorized
  • Connector Type: 15-Pin Female D-Sub
  • Max. Step Frequency: 20 kHz
  • Operation: Open-Loop
Optics and Opto-Mechanics
Visit WebsiteOptics and Opto-Mechanics
Gigahertz-Optik Inc.
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Other
Multi-Wavelength Beam Combiner
Visit WebsiteMulti-Wavelength Beam Combiner
Mightex Systems
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Mounts

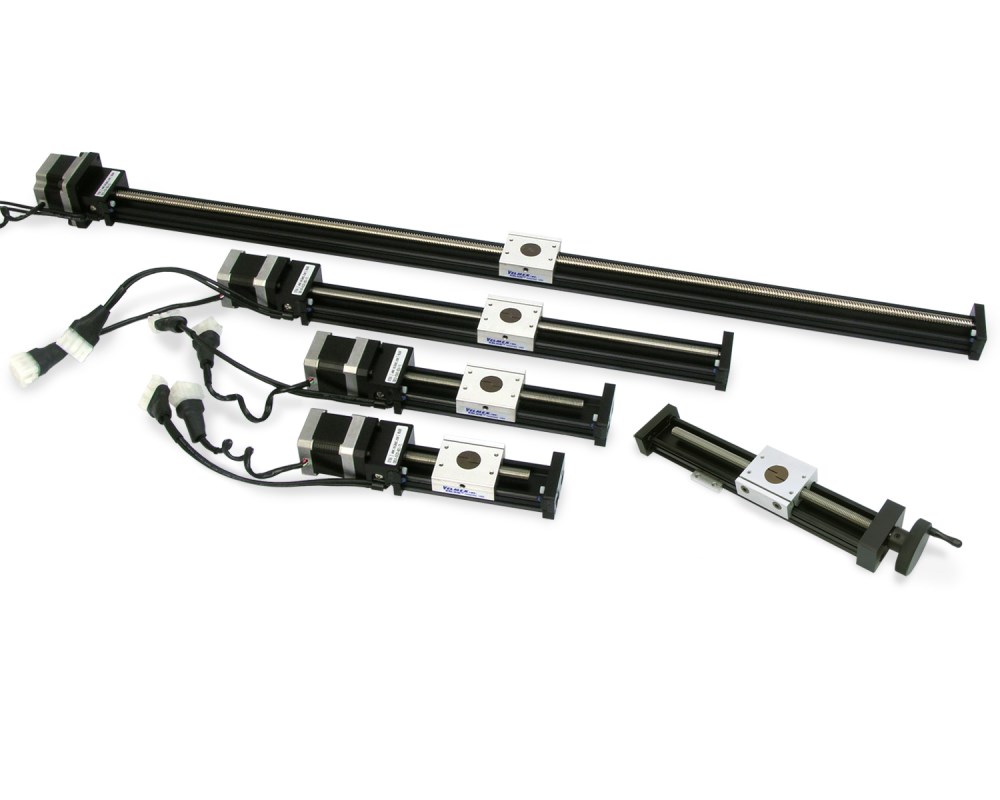

BiSlide Linear Assemblies
BiSlide® Linear Assemblies
Velmex Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 136.1kg
  • Height: 6.2cm
  • X-Axis Travel Length: 203.2cm
  • Y-Axis Travel Length: 203.2cm
  • Stage Type: Manual,Motorized
  • Driver Included?: No
  • Load Capacity (horizontally): 300 lbs
  • Travel Lengths: up to 80"

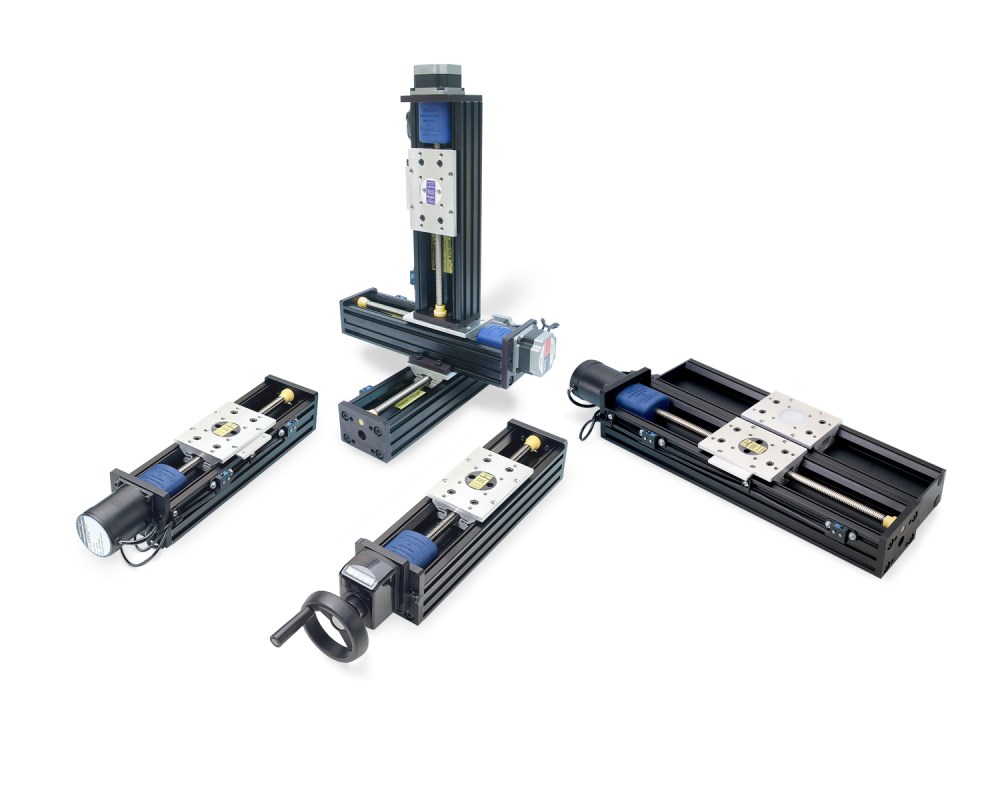

XSlide™ Assemblies
XSlide™ Assemblies
Velmex Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 15.9kg
  • Height: 3.5cm
  • X-Axis Travel Length: 76.2cm
  • Y-Axis Travel Length: 76.2cm
  • Stage Type: Manual,Motorized
  • Driver Included?: No
UniSlide Assemblies
UniSlide® Assemblies
Velmex Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 182kg
  • Height: 7.95cm
  • X-Axis Travel Length: 106.68cm
  • Y-Axis Travel Length: 106.68cm
  • Stage Type: Manual,Motorized
  • Driver Included?: No

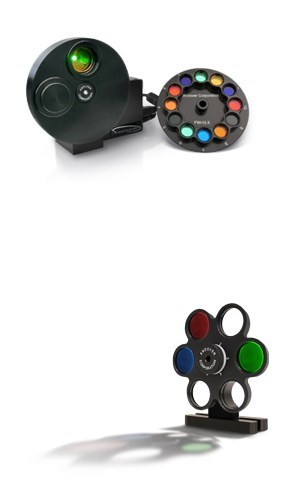

Motorized Filter Wheel
Motorized Filter Wheel
Andover Corporation
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Filter Wheels
  • Compact Size: 5" × 4.5" × 1.9"
  • Diameter: 12.5 - 25 mm
  • Serial: RS 232
Motorized Iris Diaphragm MID5C
Visit WebsiteMotorized Iris Diaphragm MID5C
GEOLA Digital Ltd.
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Other
  • Adjustment Range: 0 to 5 mm
  • Closing Time (Max to Min): ~3 sec
  • Microstep Size: 1 μm
Motorized Iris Diaphragm MID14C
Visit WebsiteMotorized Iris Diaphragm MID14C
GEOLA Digital Ltd.
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Other
  • Backlash: < 30 µm
  • Closing Time (Max to Min): 11 sec
  • Microstep Size: 10 µm
Mechanical Diaphragm
Visit WebsiteMechanical Diaphragm
GEOLA Digital Ltd.
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Other
  • Aperture Shape: Square or Rectangle
  • Aperture Size: 0 - 12 mm
  • Material (blades): Aluminum (Brass – opt.)
PZ-2000FT Series Automated Stage
PZ-2000FT Series Automated Stage
Applied Scientific Instrumentation Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 2kg
  • X-Axis Travel Length: 120mm
  • Y-Axis Travel Length: 110mm
  • Max. Linear Speed: 7mm/s
  • Stage Type: Motorized
  • Driver Included?: Yes
  • Maximum Continuous Output: 13 mA
  • PZ-2150 Travel Range: 150 μm
  • PZ-2300 Travel Range: 300 μm
LS-50
LS-50
Applied Scientific Instrumentation Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 4.5kg
  • Mass: 1.4kg
  • Height: 35.5mm
  • X-Axis Travel Length: 50mm
  • Max. Linear Speed: 1.6mm/s
  • Stage Type: Motorized
  • Accuracy: 0.25 μm per mm
  • Length: 152.5 mm
  • Resolution: < 0.1 μm
FiberMaxHP Multi-Axis Photonics Alignment System
Visit WebsiteFiberMax®HP Multi-Axis Photonics Alignment System
Aerotech Inc.
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Other
  • Accuracy: ±200 nm
  • Angular travel: 20°
  • Biodirectional repeatability: ±150 nm
HexGen HEX500-350HL
HexGen HEX500-350HL
Aerotech Inc.
  • Category: Optomechanics & Positioning / Hexapods
  • Type: Hexapod
  • Max. Load: 200kg
  • Mass: 49kg
  • Height: 350mm
  • X-Axis Range: 100mm
  • Y-Axis Range: 110mm
  • Z-Axis Range: 54mm
  • Linear Accuracy: ±0.5 μm
  • Linear Resolution: 20 nm
  • Rotary Accuracy: ±2.5 μrad
AGV-XPO High-Dynamic Laser Scan Head
AGV-XPO High-Dynamic Laser Scan Head
Aerotech Inc.
  • Category: Optomechanics & Positioning / Galvanometers
  • Type: 2 Axis
  • Max. Scan Angle X (degrees): 20
  • Max. Scan Angle Y (degrees): 20
PRO190LM Series
PRO190LM Series
Aerotech Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 60kg
  • Mass: 36.4kg
  • Height: 85mm
  • X-Axis Travel Length: 1000mm
  • Max. Linear Speed: 2m/s
  • Stage Type: Motorized
  • Accuracy: ±1.5 μm
  • Resolution: 5 nm
ABRX Air Bearing Rotary
ABRX Air Bearing Rotary
Aerotech Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Rotation Stage
  • Max. Load: 110kg
  • Max. Rotation Speed (degrees/s): 1500
  • Stage Type: Motorized
Automation1 XA4 1- 2- or 4-Axis PWM Servo Drive
Visit WebsiteAutomation1 XA4 1- 2- or 4-Axis PWM Servo Drive
Aerotech Inc.
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Motion Controllers
  • # of Axes: 1, 2, or 4
  • Current Loop Update Rate: 20 kHz
  • High Speed Data Capture: Yes (50 ns latency)
HexGen HEX300-230HL
HexGen HEX300-230HL
Aerotech Inc.
  • Category: Optomechanics & Positioning / Hexapods
  • Type: Hexapod
  • Max. Load: 45kg
  • Mass: 12kg
  • Height: 230mm
  • X-Axis Range: 55mm
  • Y-Axis Range: 60mm
  • Z-Axis Range: 25mm
  • Linear Accuracy: ±0.5 μm
  • Linear Resolution: 20 nm
  • Rotary Accuracy: ±2.5 μrad
Adjust-A-Ball Series Optomechanical Mounts, Reflectors, Posts & More!
Visit WebsiteAdjust-A-Ball Series Optomechanical Mounts, Reflectors, Posts & More!
Power Technology Inc.
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Mounts
Brushless DC Motor Driven XY Stage
Brushless DC Motor Driven XY Stage
Thorlabs Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 10kg
  • Mass: 8.9kg
  • Height: 70.1mm
  • X-Axis Travel Length: 150mm
  • Y-Axis Travel Length: 150mm
  • Max. Linear Speed: 170mm/s
  • Absolute On-Axis Accuracy: ±10 μm
  • Continuous Motor Force: 10.0 N
  • Maximum Acceleration: 1000 mm/s^2
HexGen HEX150-125HL Miniature Hexapod Six-DOF Positioning System
HexGen® HEX150-125HL Miniature Hexapod Six-DOF Positioning System
Aerotech Inc.
  • Category: Optomechanics & Positioning / Hexapods
  • Type: Hexapod
  • Max. Load: 12kg
  • Mass: 3kg
  • Height: 125mm
  • X-Axis Range: 42mm
  • Y-Axis Range: 44mm
  • Z-Axis Range: 17mm
  • Linear resolution: 15 nm
  • Rotary resolution: 0.04 arc sec

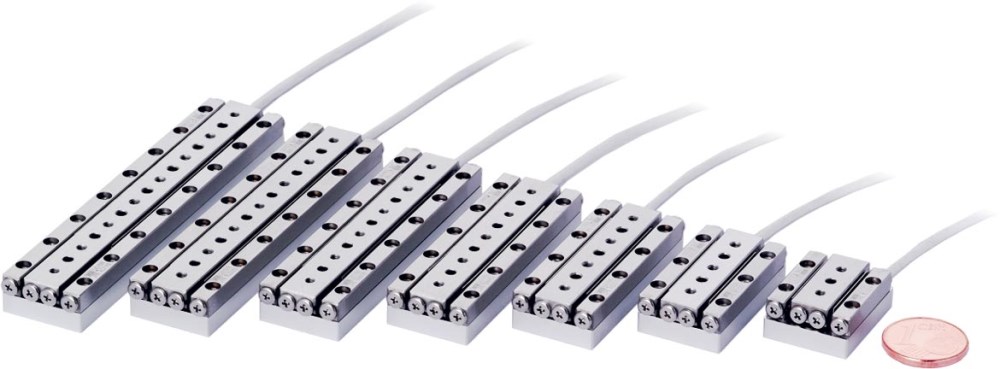

Linear Positioners
Visit WebsiteLinear Positioners
SmarAct Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 3kg
  • Height: 8.5mm
  • X-Axis Travel Length: 51mm
  • Max. Linear Speed: 2cm/s
  • Stage Type: Motorized
  • Cryogenic Option: Yes
  • Non-Magnetic Materials: Available
  • Sensor Resolution: 1 nm
SmarPod
Visit WebsiteSmarPod
SmarAct Inc.
  • Category: Optomechanics & Positioning / Hexapods
  • Type: Hexapod
  • Max. Load: 500g
  • Mass: 200g
  • Height: 42mm
  • X-Axis Range: 11mm
  • Y-Axis Range: 11mm
  • Z-Axis Range: 6mm
  • Non-Magnetic Materials: Available
  • Smallest Increment: 1 nm
  • UHV Compatibility: Yes
MMF Series Optical Flip Mount
MMF Series Optical Flip Mount
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Mounts
PY Series Mounts
PY Series Mounts
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Mounts
IVM Series, Top Adjust Kinematic Mounts
IVM Series, Top Adjust Kinematic Mounts
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Mounts
PRH/MRH Series Rod Holder
PRH/MRH Series Rod Holder
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Posts
IXF Series Flexure Optic Mounts
IXF Series Flexure Optic Mounts
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Mounts
IAG Series Gimbal Mount
IAG Series Gimbal Mount
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Mounts
EOP Pockels Cell Mount
EOP Pockels Cell Mount
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Mounts
IM Series Kinematic Mounts
IM Series Kinematic Mounts
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Other Optomechanics / Positioning
  • Type: Optical Mounts
Rectangular Aluminum Platforms
Rectangular Aluminum Platforms
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Optical Tables
  • Type: Rigid
  • Width: 400mm
  • Length: 600mm
  • Height: 12.7mm
  • Table Thickness: 12.7mm
  • Total Weight (kg): 2.5
  • Flatness Over 1 m^2 (± mm): 0.1
DT-100 Series Stage
DT-100 Series Stage
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 0.2kg
  • Mass: 0.15kg
  • Height: 5.4cm
  • X-Axis Travel Length: 12mm
  • Y-Axis Travel Length: 12mm
  • Max. Linear Speed: 1mm/s
  • Minimum controllable motion*: 5 µm
  • Z-Axis Travel: 12mm
7600 Series Stage
7600 Series Stage
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 4.5kg
  • Mass: 2.5kg
  • Height: 22cm
  • X-Axis Travel Length: 20mm
  • Y-Axis Travel Length: 20mm
  • Max. Linear Speed: 1.7mm/s
  • Backlash: < 5 µm
  • Maximum horizontal axis load: 10 lbs
  • Maximum vertical axis load: 4 lbs
37.12dt Series Stage
37.12dt Series Stage
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Mass: 0.1kg
  • Height: 10mm
  • X-Axis Travel Length: 3mm
  • Max. Linear Speed: 1mm/s
  • Stage Type: Manual
150.5cr Series Stage
150.5cr Series Stage
Siskiyou Corporation
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 7kg
  • Mass: 1kg
  • Height: 15.5cm
  • X-Axis Travel Length: 2.54cm
  • Y-Axis Travel Length: 2.5cm
  • Max. Linear Speed: 1mm/s
  • Resolution: w/ 100TPI screw submicron
  • Resolution: w/ 80TPI screw 5 µm
  • Z-travel: 1.0 inch / 2.54 cm
precSYS 5-axis micromachining system
precSYS 5-axis micromachining system
SCANLAB GmbH
  • Category: Optomechanics & Positioning / Galvanometers
  • Type: 3 Axis
  • Weight: 30kg
excelliSCAN
excelliSCAN
SCANLAB GmbH
  • Category: Optomechanics & Positioning / Galvanometers
  • Type: 2 Axis
  • Max. Scan Angle X (degrees): 0.35
  • Repeatablility (µrad): 0.4
  • Weight: 7kg
Galvanometer: dynAXIS3 M
Galvanometer: dynAXIS3 M
SCANLAB GmbH
  • Category: Optomechanics & Positioning / Galvanometers
  • Type: 1 Axis
  • Small Step Response (µs): 0.4
  • Repeatablility (µrad): 1
  • Overall Height (no mirror): 74mm
  • Weight: 300g
  • Nonlinearity: <0.1%
V-731 Integrated High Speed Precision XY Stage
V-731 Integrated High Speed Precision XY Stage
PI (Physik Instrumente) LP, Motion Control, Air Bearings, Piezo Mechanics
  • Category: Optomechanics & Positioning / Stages
  • Type: Nanopositioning Stage
  • Max. Load: 5kg
  • Mass: 19.4kg
  • Height: 60mm
  • X-Axis Travel Length: 205mm
  • Y-Axis Travel Length: 205mm
  • Max. Linear Speed: 200mm/s
V-610 High Precision Rotation Stage
V-610 High Precision Rotation Stage
PI (Physik Instrumente) LP, Motion Control, Air Bearings, Piezo Mechanics
  • Category: Optomechanics & Positioning / Stages
  • Type: Rotation Stage
  • Max. Load: 2kg
  • Mass: 630g
  • Height: 28mm
  • Max. Rotation Speed (degrees/s): 540
  • Stage Type: Motorized
  • Driver Included?: Yes

Optomechanics & Positioning

Marketplace Help Need Help?

Explore Our Content
News
Feature Articles
Latest Products
Webinars
White Papers
All Things Photonics Podcast
Photonics Spectra Now
Videos
Our Summits & Conferences
Industry Events
Bookstore
Join Our Community
Subscribe
Advertise
Become a member
Sign in
Contribute a Feature
Suggest a Webinar
Submit a Press Release
Mobile Apps

About Us
Our Company
Our Publications
Contact Us
Career Opportunities
Teddi C. Laurin Scholarship

Terms & Conditions
Privacy Policy
California Consumer Privacy Act (CCPA)



©2025 Photonics Media
100 West St.
Pittsfield, MA, 01201 USA
marketplace@photonics.com
We use cookies to improve user experience and analyze our website traffic as stated in our Privacy Policy. By using this website, you agree to the use of cookies unless you have disabled them.
