18 products

Photonics Products

Clear All Filters xHamamatsu Corporation x

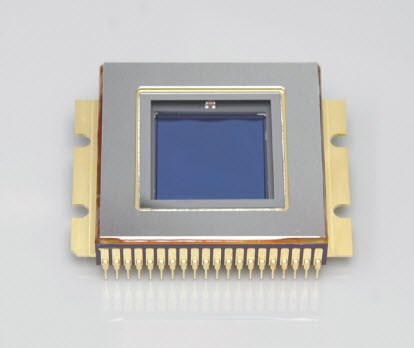

S12101 CCD Area Image Sensor
S12101 CCD Area Image Sensor
Hamamatsu Corporation
  • Category: Sensing & Detection / Sensors & Detectors
  • Type: CCD
  • Max. Resolution: 4MP
  • Scan Type & Rate: Area
  • Light Spectrum: UV,VIS,NIR,SWIR
  • Number of Pixels: 2048 x 2048
  • Pixel Size: 12 x 12 µm
  • Spectral Response Range: 165-1100 nm
Mini Spectrometer TF Series - C13054MA
Mini Spectrometer TF Series - C13054MA
Hamamatsu Corporation
  • Category: Spectroscopy / Spectrometers
  • Type: Portable
  • Measurement Techniques: Inelastic Scattering,Raman
  • Spectral Range (nm): 790 - 920
  • Max. Resolution (nm): 0.7
  • Pixel Count (total pixels): 512
  • Width: 80mm
  • Length: 60mm

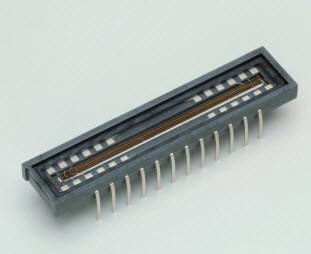

S11639-01 CMOS Linear Image Sensor
S11639-01 CMOS Linear Image Sensor
Hamamatsu Corporation
  • Category: Sensing & Detection / Sensors & Detectors
  • Type: CMOS
  • Max. Resolution: 2KP
  • Scan Type & Rate: Linear
  • kHz at Max. Res.: 10000
  • Light Spectrum: UV,VIS,NIR,SWIR
  • Number of Pixels: 2048
  • Pixel Size: 14 µm x 200 µm
  • Spectral Response Range: 200-1000 nm

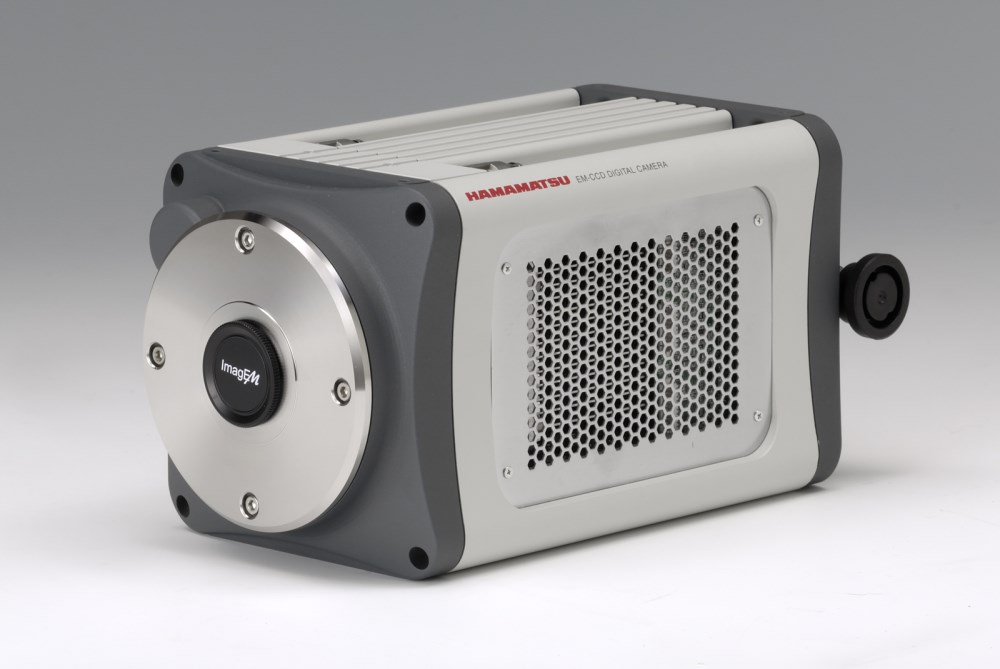

ImagEM X2: C9100-23B
ImagEM X2: C9100-23B
Hamamatsu Corporation
  • Category: Cameras & Imaging / Cameras
  • Type: EMCCD
  • Max. Resolution: 262KP
  • Sensor Width (pixels): 512
  • Sensor Height (pixels): 512
  • Scan Type & Rate: Area Scan
  • Frames (fps) at Max. Res.: 70.4
  • Interface: FireWire IEEE-1394b
ORCA-Flash4.0 LT: C11440-42U
ORCA-Flash4.0 LT: C11440-42U
Hamamatsu Corporation
  • Category: Cameras & Imaging / Cameras
  • Type: sCMOS
  • Max. Resolution: 4MP
  • Sensor Width (pixels): 2048
  • Sensor Height (pixels): 2048
  • Scan Type & Rate: Area Scan
  • Frames (fps) at Max. Res.: 30
  • Interface: USB 3.0

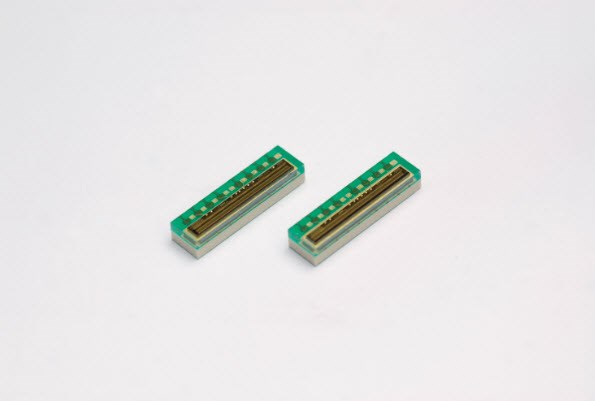

S10226-10 CMOS Linear Image Sensor
S10226-10 CMOS Linear Image Sensor
Hamamatsu Corporation
  • Category: Sensing & Detection / Sensors & Detectors
  • Type: CMOS
  • Max. Resolution: 1KP
  • Scan Type & Rate: Linear
  • kHz at Max. Res.: 200
  • Light Spectrum: UV,VIS,NIR,SWIR
  • Number of Pixels: 1024
  • Pixel Size: 7.8 um x 125 µm
  • Spectral Response Range: 400-1000 nm
L13895-0145G
L13895-0145G
Hamamatsu Corporation
  • Category: Illumination / LEDs & Emitters
  • Type: Surface Mount
  • High Power: Yes
  • Color: Infrared
  • Wavelength (nm): 1400 - 1500
  • Forward Voltage (V): 1
  • Forward Current: 100mA
  • Operating Temperature (°C): -30 - 85

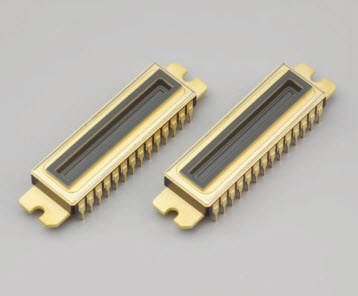

S13255-2048-02 CCD Linear Image Sensor
S13255-2048-02 CCD Linear Image Sensor
Hamamatsu Corporation
  • Category: Sensing & Detection / Sensors & Detectors
  • Type: CCD
  • Max. Resolution: 2KP
  • Scan Type & Rate: Linear
  • kHz at Max. Res.: 10000
  • Light Spectrum: UV,VIS,NIR,SWIR
  • Number of Pixels: 2048
  • Pixel Size: 14 µm x 500 µm
  • Spectral Response Range: 200-1100 nm
G12230-512WB InGaAs Linear Image Sensor
G12230-512WB InGaAs Linear Image Sensor
Hamamatsu Corporation
  • Category: Sensing & Detection / Sensors & Detectors
  • Type: InGaAs
  • Max. Resolution: 0.5MP
  • Scan Type & Rate: Linear
  • kHz at Max. Res.: 5000
  • Light Spectrum: NIR,SWIR
  • Number of Pixels: 508
  • Pixel Size: 25 x 250 µm
  • Spectral Response Range: 0.95-2.15 µm

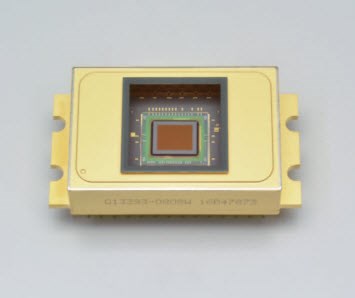

G13393-0808W InGaAs Area Image Sensor
G13393-0808W InGaAs Area Image Sensor
Hamamatsu Corporation
  • Category: Sensing & Detection / Sensors & Detectors
  • Type: InGaAs
  • Max. Resolution: 82KP
  • Scan Type & Rate: Area
  • Frames (fps) at Max. Res.: 228
  • Light Spectrum: NIR,SWIR
  • Number of Pixels: 320 x 256
  • Pixel Size: 20 x 20 µm
  • Spectral Response Range: 0.95-1.7 µm

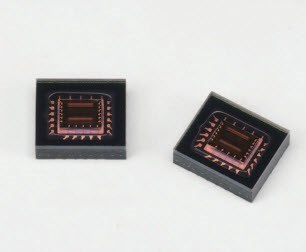

S11963-01CR Distance Image Sensor
S11963-01CR Distance Image Sensor
Hamamatsu Corporation
  • Category: Sensing & Detection / Sensors & Detectors
  • Type: Other
  • Max. Resolution: 19KP
  • Scan Type & Rate: Area
  • Light Spectrum: VIS,NIR,SWIR
  • Max. Video Data Rate: 10 MHz
  • Number of Pixels: 160 x 120
  • Pixel Size: 30 x 30 µm

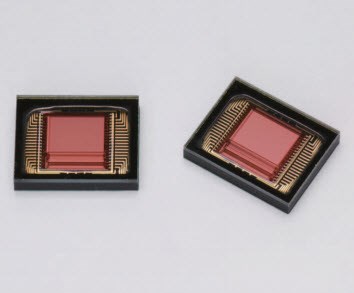

S12973-01CT Distance Image Sensor
S12973-01CT Distance Image Sensor
Hamamatsu Corporation
  • Category: Sensing & Detection / Sensors & Detectors
  • Type: Other
  • Scan Type & Rate: Linear
  • kHz at Max. Res.: 5000
  • Light Spectrum: VIS,NIR,SWIR
  • Number of Pixels: 64
  • Pixel Size: 22 x 50 µm
  • Spectral Response Range: 440-1000 nm
Micro-Spectrometer: C12666MA
Micro-Spectrometer: C12666MA
Hamamatsu Corporation
  • Category: Spectroscopy / Spectrometers
  • Type: Portable
  • Measurement Techniques: Absorption,Emission,Reflectance and Transmission
  • Spectral Range (nm): 340 - 780
  • Max. Resolution (nm): 15
  • Pixel Count (total pixels): 256
  • Width: 20.1mm
  • Length: 12.5mm
Micro-Spectrometer: C12880MA
Micro-Spectrometer: C12880MA
Hamamatsu Corporation
  • Category: Spectroscopy / Spectrometers
  • Type: Portable
  • Measurement Techniques: Absorption,Emission,Reflectance and Transmission
  • Spectral Range (nm): 340 - 850
  • Max. Resolution (nm): 15
  • Pixel Count (total pixels): 288
  • Width: 20.1mm
  • Length: 12.5mm
Mini Spectrometer TF Series - C13555MA
Mini Spectrometer TF Series - C13555MA
Hamamatsu Corporation
  • Category: Spectroscopy / Spectrometers
  • Type: Portable
  • Measurement Techniques: Absorption,Emission,Fluorescence,Reflectance and Transmission
  • Spectral Range (nm): 340 - 830
  • Max. Resolution (nm): 3
  • Pixel Count (total pixels): 512
  • Width: 80mm
  • Length: 60mm
Mini Spectrometer TF Series - C13053MA
Mini Spectrometer TF Series - C13053MA
Hamamatsu Corporation
  • Category: Spectroscopy / Spectrometers
  • Type: Portable
  • Measurement Techniques: Absorption,Emission,Fluorescence,Reflectance and Transmission
  • Spectral Range (nm): 500 - 1100
  • Max. Resolution (nm): 3.5
  • Pixel Count (total pixels): 512
  • Width: 80mm
  • Length: 60mm
ORCA-Flash4.0 V3: C13440-20CU
ORCA-Flash4.0 V3: C13440-20CU
Hamamatsu Corporation
  • Category: Cameras & Imaging / Cameras
  • Type: sCMOS
  • Max. Resolution: 4MP
  • Sensor Width (pixels): 2048
  • Sensor Height (pixels): 2048
  • Scan Type & Rate: Area Scan
  • Frames (fps) at Max. Res.: 100
  • Interface: USB 3.0,Camera Link
  • A/D Converter: 16 bit, 12 bit, 8 bit
  • Cell Size: 6.5 x 6.5 µm
  • Cooled:
ImagEM X2-1K: C9100-24B
ImagEM X2-1K: C9100-24B
Hamamatsu Corporation
  • Category: Cameras & Imaging / Cameras
  • Type: EMCCD
  • Max. Resolution: 1MP
  • Sensor Width (pixels): 1024
  • Sensor Height (pixels): 1024
  • Scan Type & Rate: Area Scan
  • Frames (fps) at Max. Res.: 18.5
  • Interface: FireWire IEEE-1394b
