11 products

Photonics Products

Clear All Filters xAerotech Inc. x

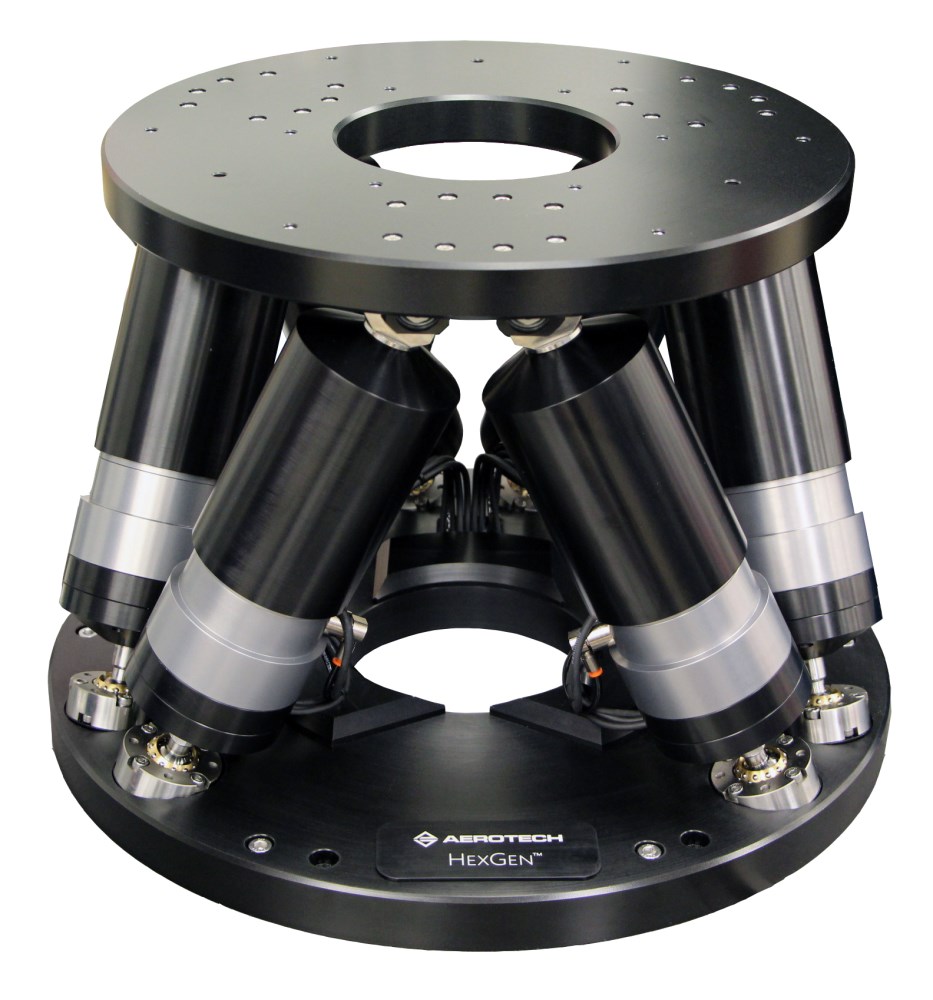

HexGen HEX500-350HL
HexGen HEX500-350HL
Aerotech Inc.
  • Category: Optomechanics & Positioning / Hexapods
  • Type: Hexapod
  • Max. Load: 200kg
  • Mass: 49kg
  • Height: 350mm
  • X-Axis Range: 100mm
  • Y-Axis Range: 110mm
  • Z-Axis Range: 54mm
  • Linear Accuracy: ±0.5 μm
  • Linear Resolution: 20 nm
  • Rotary Accuracy: ±2.5 μrad
HexGen HEX300-230HL
HexGen HEX300-230HL
Aerotech Inc.
  • Category: Optomechanics & Positioning / Hexapods
  • Type: Hexapod
  • Max. Load: 45kg
  • Mass: 12kg
  • Height: 230mm
  • X-Axis Range: 55mm
  • Y-Axis Range: 60mm
  • Z-Axis Range: 25mm
  • Linear Accuracy: ±0.5 μm
  • Linear Resolution: 20 nm
  • Rotary Accuracy: ±2.5 μrad

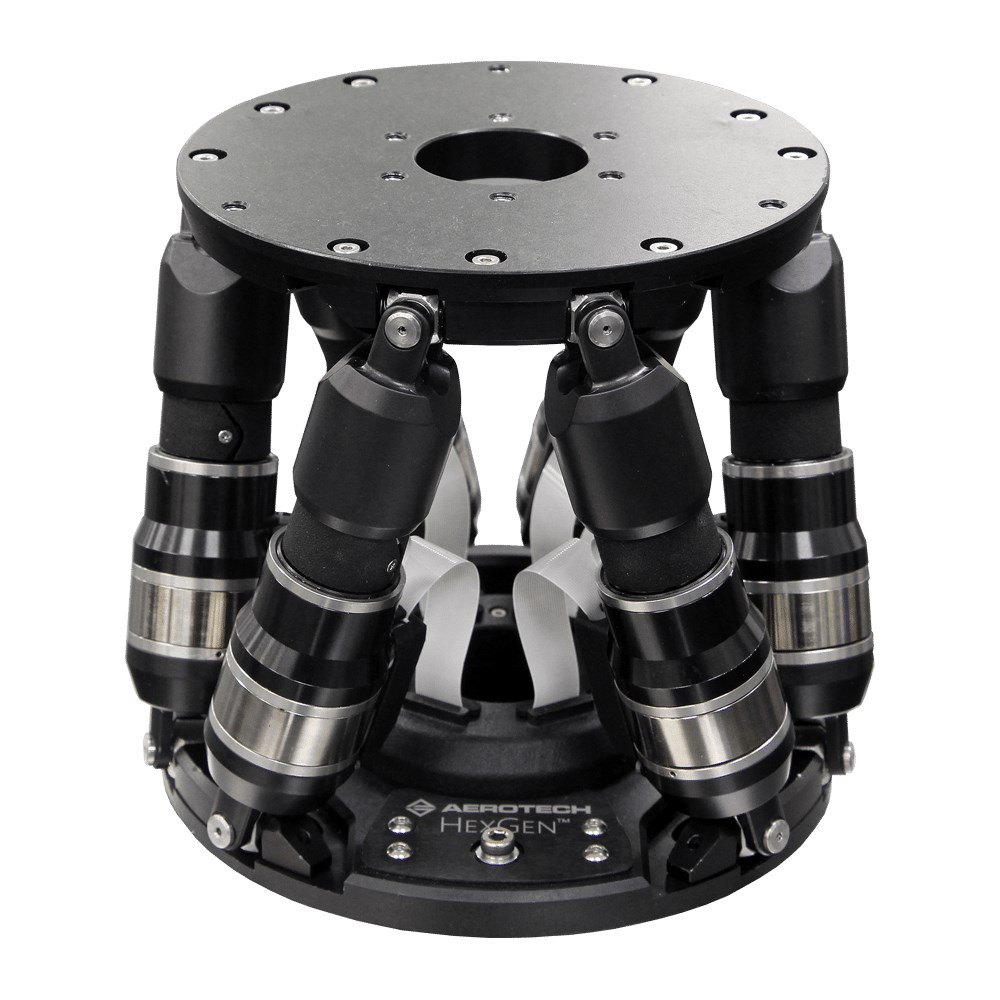

HexGen HEX150-140HL
HexGen HEX150-140HL
Aerotech Inc.
  • Category: Optomechanics & Positioning / Hexapods
  • Type: Hexapod
  • Max. Load: 7.5kg
  • Mass: 2.3kg
  • Height: 141mm
  • X-Axis Range: 40mm
  • Y-Axis Range: 40mm
  • Z-Axis Range: 16mm
  • Linear Accuracy: ±0.75 µm
  • Linear Resolution: 20 nm
  • Rotary Accuracy: ±7.3 µrad

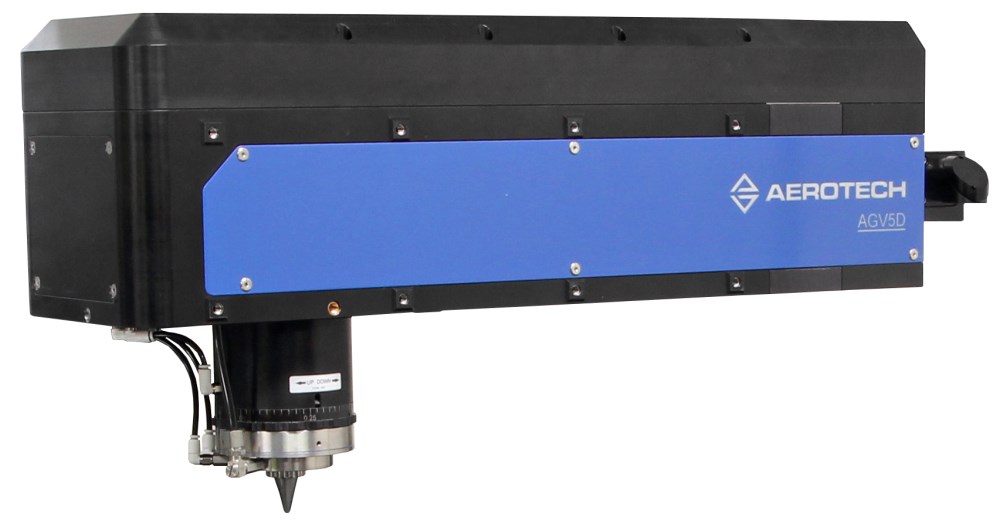

AGV5D
AGV5D
Aerotech Inc.
  • Category: Optomechanics & Positioning / Galvanometers
  • Type: 1 Axis
  • Max. Scan Angle X (degrees): 20
  • Max. Scan Angle Y (degrees): 20
AGV-HP(O)
AGV-HP(O)
Aerotech Inc.
  • Category: Optomechanics & Positioning / Galvanometers
  • Type: 2 Axis
  • Max. Beam Diameter: 30mm
  • Max. Scan Angle X (degrees): 40
  • Max. Scan Angle Y (degrees): 40
  • Small Step Response (µs): 270
  • Repeatablility (µrad): 0.4
  • Linearity (%): 0.005
  • Long-Term Drift: 10 µrad / 12 hr
  • Max. Positioning Speed: 75 m/s
  • Processing Speed: 5 m/s

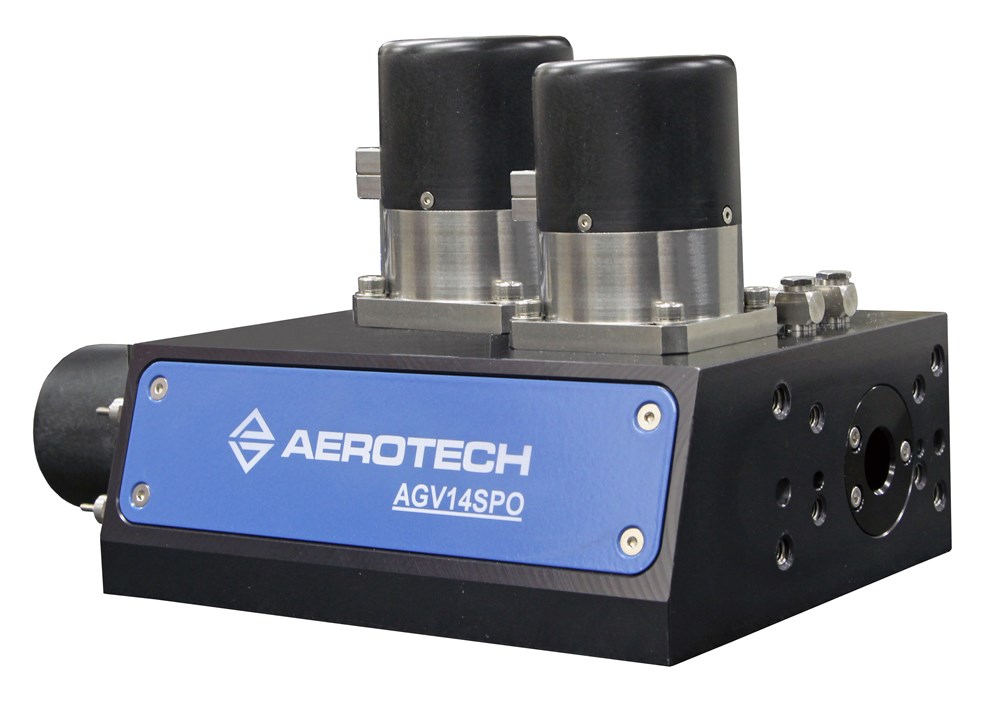

AGV-SPO
AGV-SPO
Aerotech Inc.
  • Category: Optomechanics & Positioning / Galvanometers
  • Type: 2 Axis
  • Max. Beam Diameter: 35mm
  • Max. Scan Angle X (degrees): 20
  • Max. Scan Angle Y (degrees): 20
  • Small Step Response (µs): 700
  • Repeatablility (µrad): 0.6
  • Linearity (%): 0.005
  • Accuracy: 50 µrad pk-pk
  • Beam Aperture: 14 mm
  • Dither: 0.3 µrad

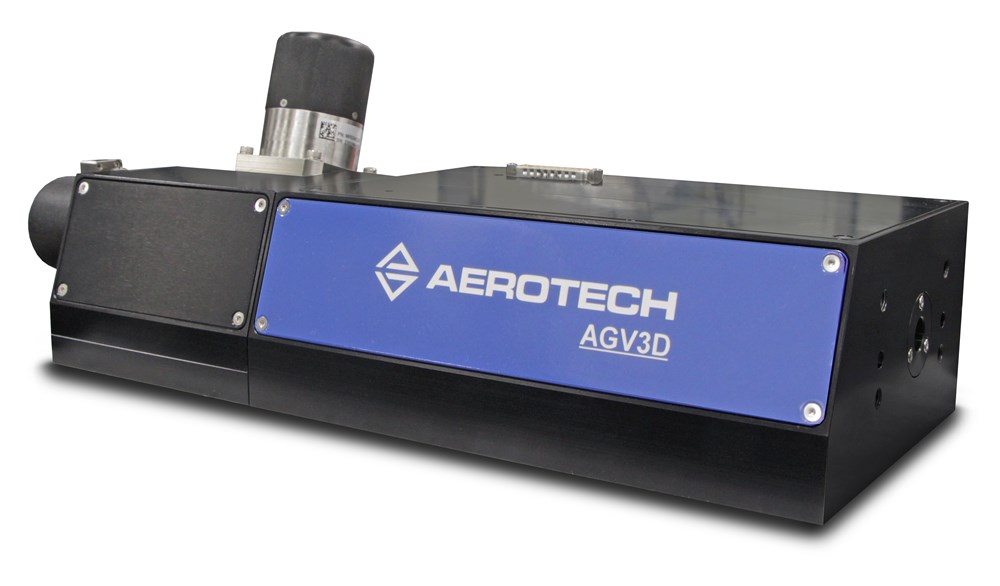

AGV3D
AGV3D
Aerotech Inc.
  • Category: Optomechanics & Positioning / Galvanometers
  • Type: 3 Axis
  • Max. Beam Diameter: 12mm
  • Overall Height (no mirror): 148.6mm
  • Weight: 11.2kg
  • Long-Term Drift: 10 µrad / 12 hr
  • Max. Positioning Speed: 400 m/s
  • Min. Incremental Motion: 0.05 µm

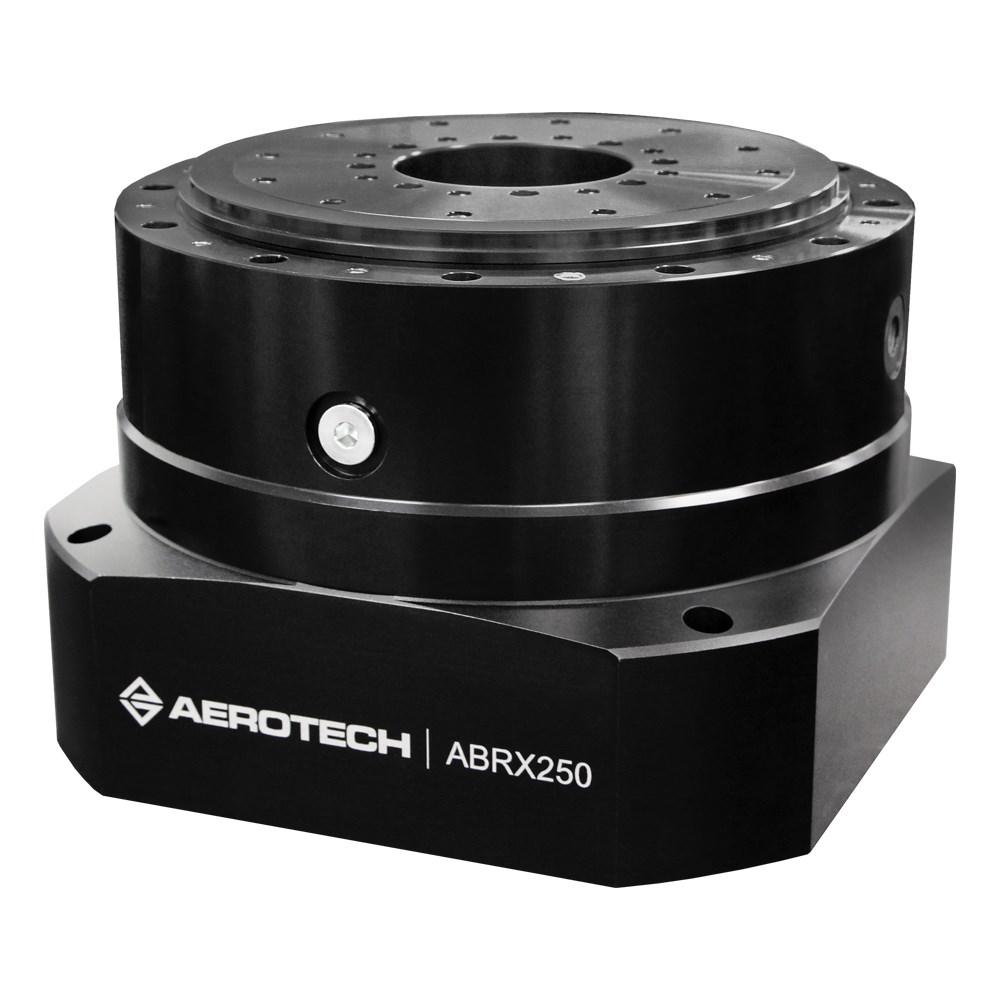

ABRX Air Bearing Rotary
ABRX Air Bearing Rotary
Aerotech Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Rotation Stage
  • Max. Load: 110kg
  • Max. Rotation Speed (degrees/s): 1500
  • Stage Type: Motorized
QNP2 Series
QNP2 Series
Aerotech Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Nanopositioning Stage
  • Max. Load: 3kg
  • Mass: 1.2kg
  • Height: 20mm
  • X-Axis Travel Length: 200µm
  • Y-Axis Travel Length: 200µm
  • Z-Axis Travel Length: 0µm
  • Bi-dir. Repeatability: 1 nm
  • Linear Resolution: 0.1 nm
  • Linearity: 0.01 %

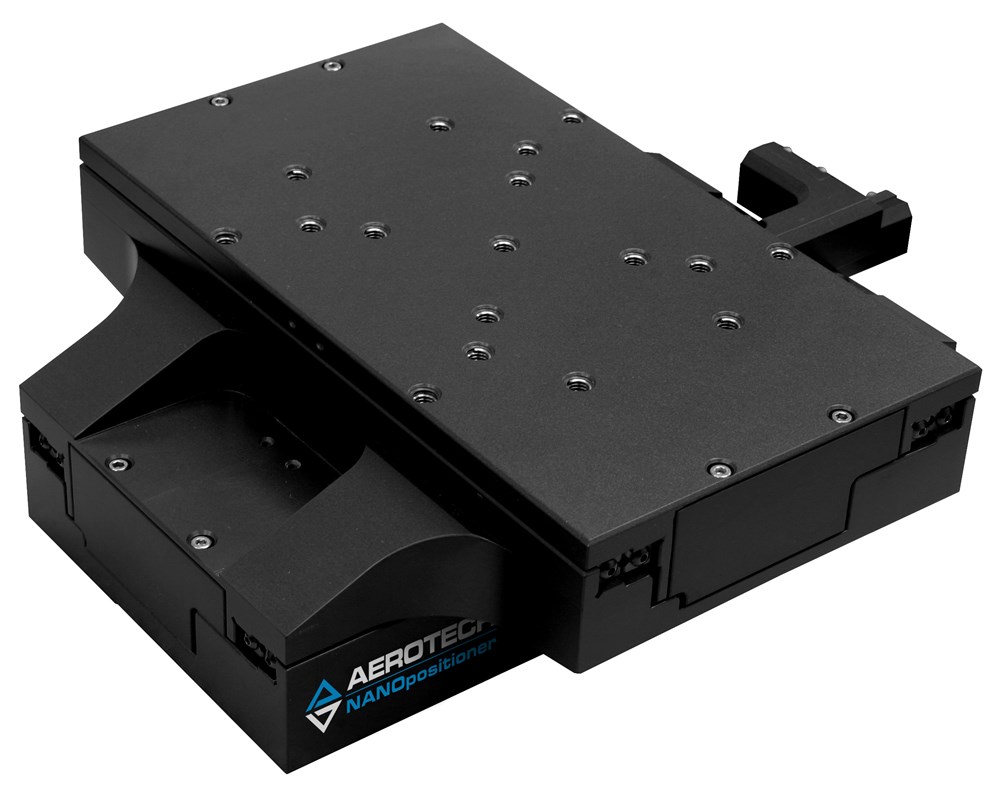

ANT130XY
ANT130XY
Aerotech Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Nanopositioning Stage
  • Max. Load: 12kg
  • Mass: 8.9kg
  • Height: 85mm
  • X-Axis Travel Length: 160mm
  • Y-Axis Travel Length: 160mm
  • Max. Linear Speed: 350mm/s
  • Bi-dir. Repeatability: ±75 nm
  • Linear Accuracy: ±300 nm
  • Linear Resolution: 1 nm
PRO190LM Series
PRO190LM Series
Aerotech Inc.
  • Category: Optomechanics & Positioning / Stages
  • Type: Linear Stage
  • Max. Load: 60kg
  • Mass: 36.4kg
  • Height: 85mm
  • X-Axis Travel Length: 1000mm
  • Max. Linear Speed: 2m/s
  • Stage Type: Motorized
  • Accuracy: ±1.5 μm
  • Resolution: 5 nm
