- Company: PicoQuant GmbH
- Type: Diode
- Max. Power: 1.5W
- Classification (IEC): Class 4
- Wavelength: 763nm - 769nm
- Wavelength - Tunable?: No
- Operating Mode: Pulsed
- Max. Pulse Rate: 80MHz
- Pulse Length: 0.5ns
- Beam Diam.: 2.2mm
- TEM: 00
- Applications: Biomedical/Medical, Industrial, Scientific Research
- Beam Quality M2: 1.02
- Short Pulse Width (ps): 70

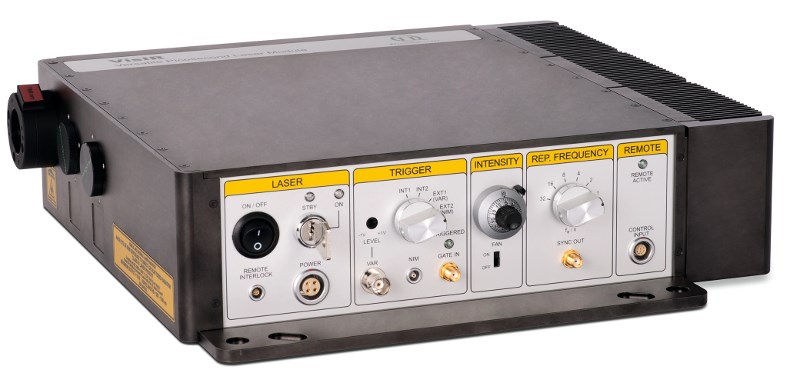

The picosecond pulsed laser is based on a master oscillator fiber amplifier (MOFA) concept with frequency conversion and variable repetition rates up to 80 MHz. Mainly designed to be used as a depletion laser in stimulated emission depletion microscopy (STED), but it can be used for various other applications.
