TECHSPEC® Athermal Imaging Lenses

• Company: Edmund Optics
• Type: Component
• Iris Option: Fixed
• Operating Temperature (°C): -10 to +50
• Maximum Image Circle (mm): 19.30
• Number of Elements (Groups): 7 (3)
• Maximum Sensor Format: 1.2"
• Working Distance (mm): 4000 - ∞

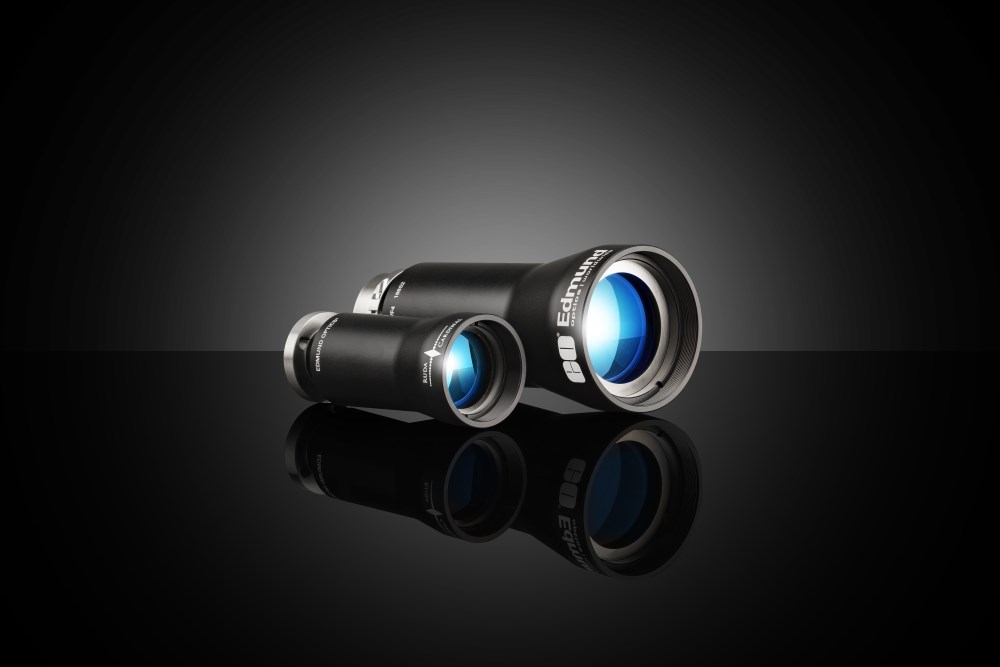

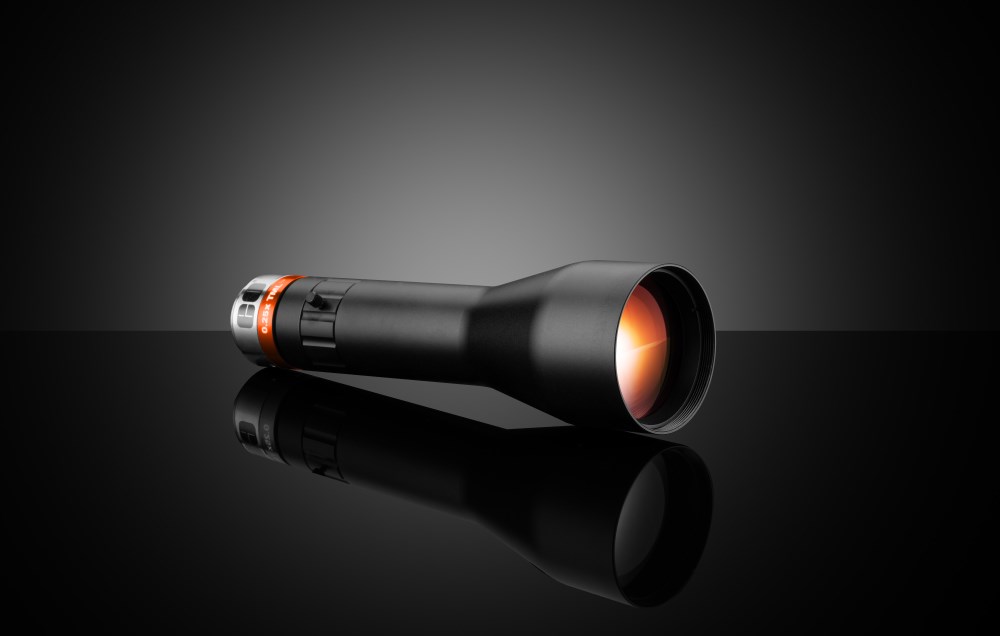

TECHSPEC® Athermal Imaging Lenses provide optothermal stability in a ruggedized lens housing, making them ideal for harsh environments. These lenses utilize passive athermalization to mitigate the effects of thermal defocus in applications that are prone to temperature fluctuations. Additionally, these lenses are ruggedized to protect against lens damage and minimize pixel shift after shock and vibration. Along with being ruggedized to protect against lens damage and minimize pixel shift after shock and vibration, these lenses are thermally compensated and best used with camera mounts made from aluminum. TECHSPEC® Athermal Imaging Lenses feature C-Mount threading and full coverage of sensors up to 1.1”.

These lenses won the 2022 Silver VSD Innovators Award and the 2022 Inspect Award.
