- Company: New Imaging Technologies (NIT)
- Type: InGaAs
- Max. Resolution: 0.3MP
- Sensor Width: 640
- Sensor Height: 512
- Light Spectrum: SWIR
- Optical format: 1 Inch
- Active pixel: 640 x 512
- Pixel size: 15 µm x15 µm
- Dynamic range: 120dB (LOG)
- Read-out noise: 50e- (CTIA)
- Power consumption: <250mW
Unique Dual-response mode

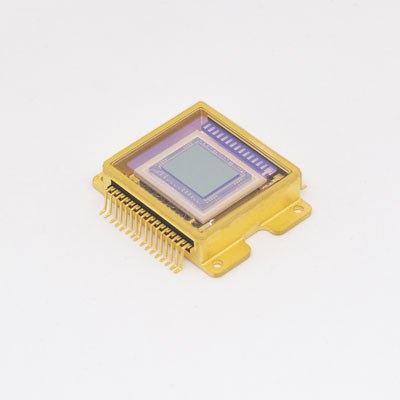

SWIR InGaAs sensor designed and manufactured by NIT, in France
VGA SWIR InGaAs detector, 640×512 active pixels, 15 µm square pixels, 12.3mm diagonal
High QE InGaAs : 80% from 900nm-1.7µm,
Dual-response mode
High Dynamic Range thanks to its patented Solar Cell pixel structure: 120 dB, Logarithmic mode – no illumination saturation
High sensitivity mode with CTIA linear structure, dual gain, Correlated Double sampling (CDS), low read-out noise
TEC
Low power consumption
Defense & Industrial application uses
