- Company: Opto Diode Corporation
- Type: Through Hole
- TO Package: TO46
- High Power: Yes
- Color: Infrared
- Wavelength (nm): 850 - 850
- Power Output: 35mW
- Half Intensity Beam Angle (degrees): 35
- Forward Voltage (V): 2
- Forward Current: 300mA
- Operating Temperature (°C): -40 - 100
- Applications: Biomedical/Medical, Industrial, Military, Scientific Research, Other
- Lead soldering temperature: 260 °C
- Reverse voltage: 5 V
- Spectral bandwidth @50%: 40 nm
- Rise time: 20 nsec
- Fall time: 20 nsec

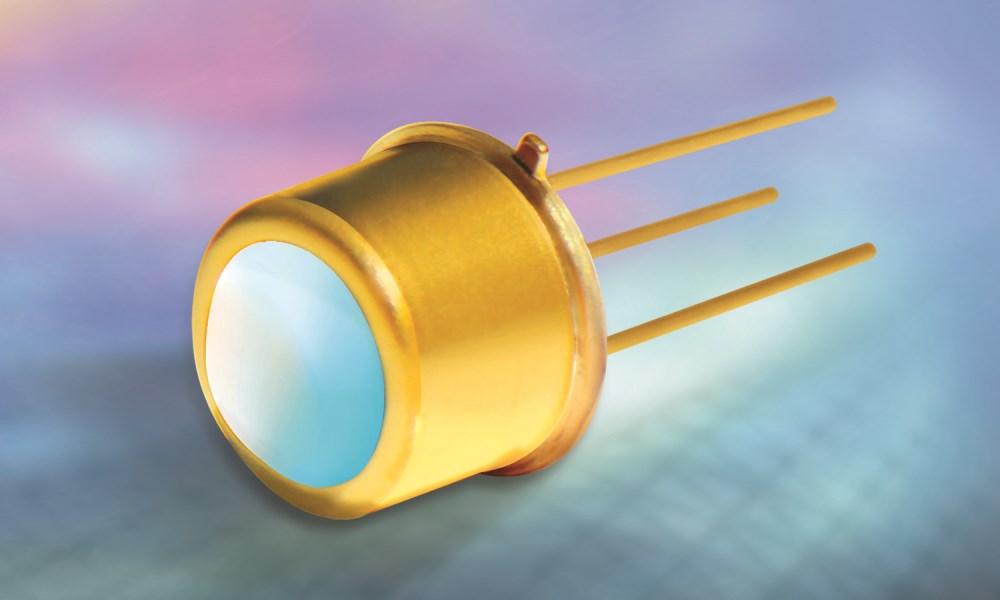

High-power GaAIAs IR Emitters feature:
-High optical output
-850 nm peak emission
-Hermetically-sealed TO-46 package
-Medium emission angle for best coverage/power density
