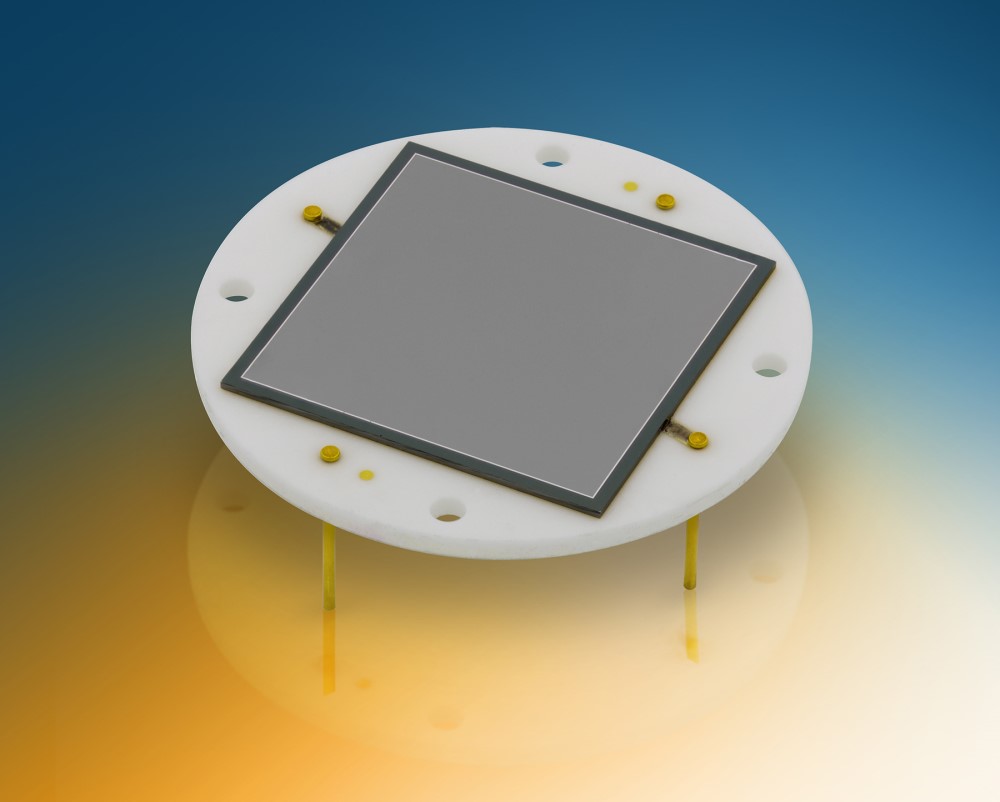

Large, Square Radiation Detector: AXUV576C

  • Company: Opto Diode Corporation
  • Type: Photodiodes
  • Sensor Width: 576.5
  • Sensor Height: 576.5
  • Light Spectrum: XRAY, Multispectral
  • Large, Square Active Area: 576.5 mm x 576.5 mm
  • Rise Time: 50 usec
  • Shunt Resistance: 5 - 50 MOhms
  • Min. Reverse Breakdown: 5V
  • Lead-SolderingTemperature: 260 °C
  • Storage & Operating Temp.: -10 °C to +40 °C

Storage and operating temperatures in nitrogen or vacuum environments:
-20 °C to +80 °C.
Capacitance ranges from 5 nF (typical) to 15 nF (maximum).
The device is part of the family of radiation detectors and offers electron detection to 200 eV.
Large, Square Radiation Detector: AXUV576C

Opto Diode Corporation
1260 Calle Suerte
Camarillo, CA 93012
United States
Phone: +1 805-499-0335
Fax: +1 805-499-8108
