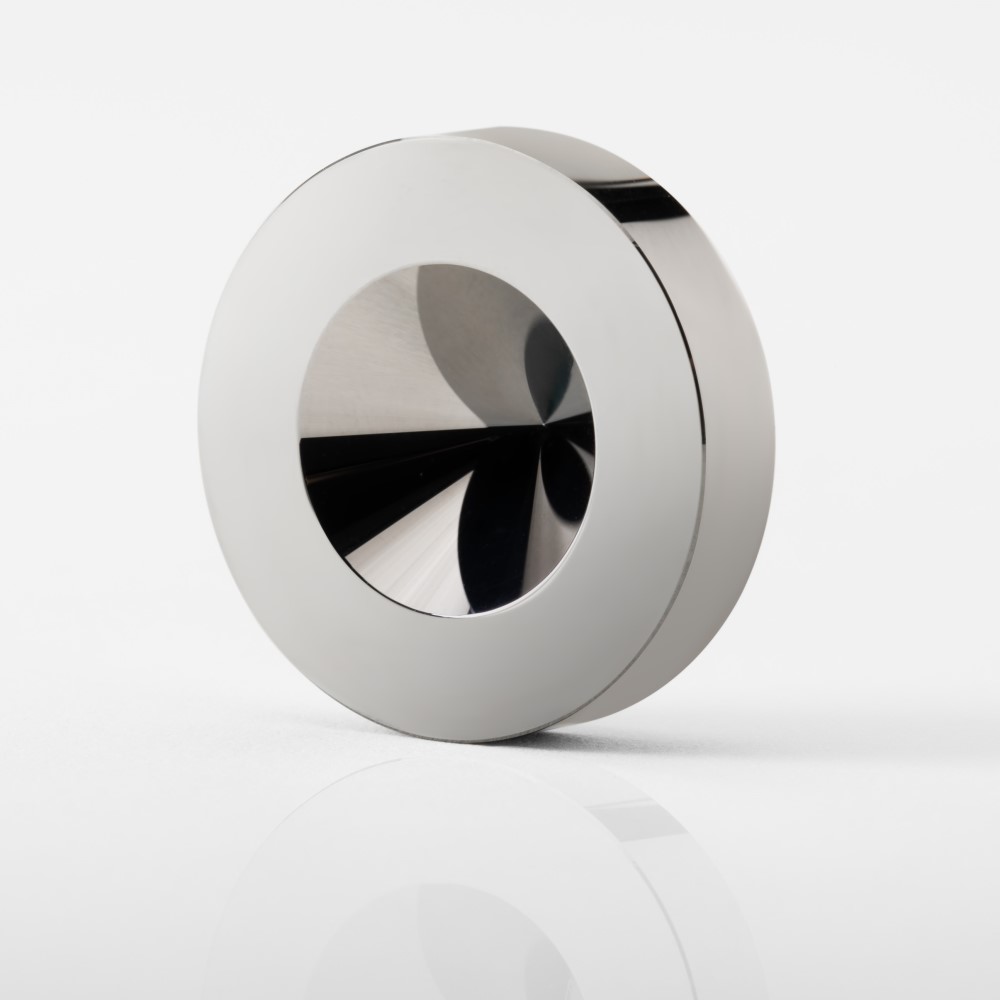

Freeform Optical Components

• Company: Optimax Systems Inc.
• Type: Freeform Optics
• Diameter (mm): +0, -0.010
• Center Thickness (mm): ± 0.050
• Irregularity – Interferometry (HeNe fringes): 0.1
• Irregularity – Profilometry (μm): ±1.0
• Wedge Lens – ETD (mm): TBD
• Surface Roughness (Å RMS): 10

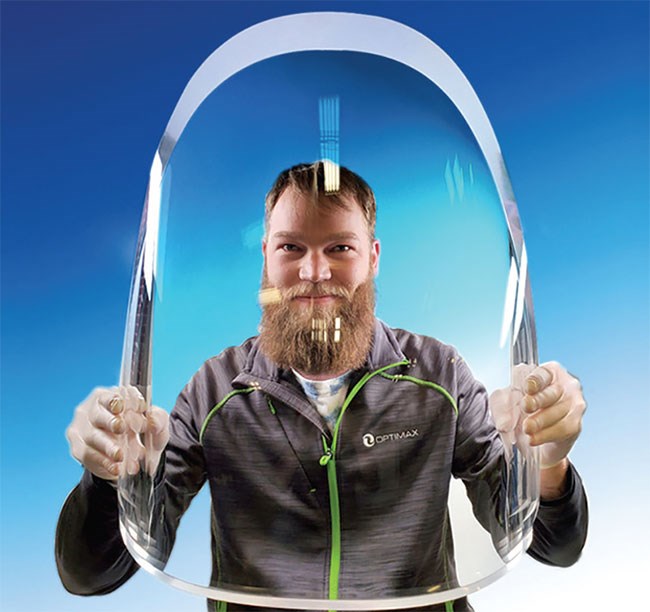

High-precision freeform optical components that enhance optical and aerodynamic performance across various applications. Manufacturing extreme freeforms is particularly challenging due to their complex geometries. However, Optimax has made significant advancements in both the manufacturing and measurement of these intricate freeform surfaces, ensuring superior quality and performance.

Types of freeforms:
-Toroid
-Atoroid/Biconic
-Acylinder
-Off-Axis Parabola (OAP)
-Anamorph
-XYZ Freeforms or Solid Model
-Other Equation-Based Freeforms
