- Company: The Imaging Source - Americas
- Type: CMOS
- Max. Resolution: 12.3MP
- Sensor Width (pixels): 4096
- Sensor Height (pixels): 3000
- Scan Type & Rate: Area Scan
- Frames (fps) at Max. Res.: 30
- Interface: USB 3.0
- Color/Mono.: Color
- Spectral Range: VIS
- Applications: Biomedical/Medical, Industrial, Other
- Type: 33u series color industrial camera
- Size: 29×29×43 cm
- Frame Rate: 30 fpx
- Global Shutter: 1µs

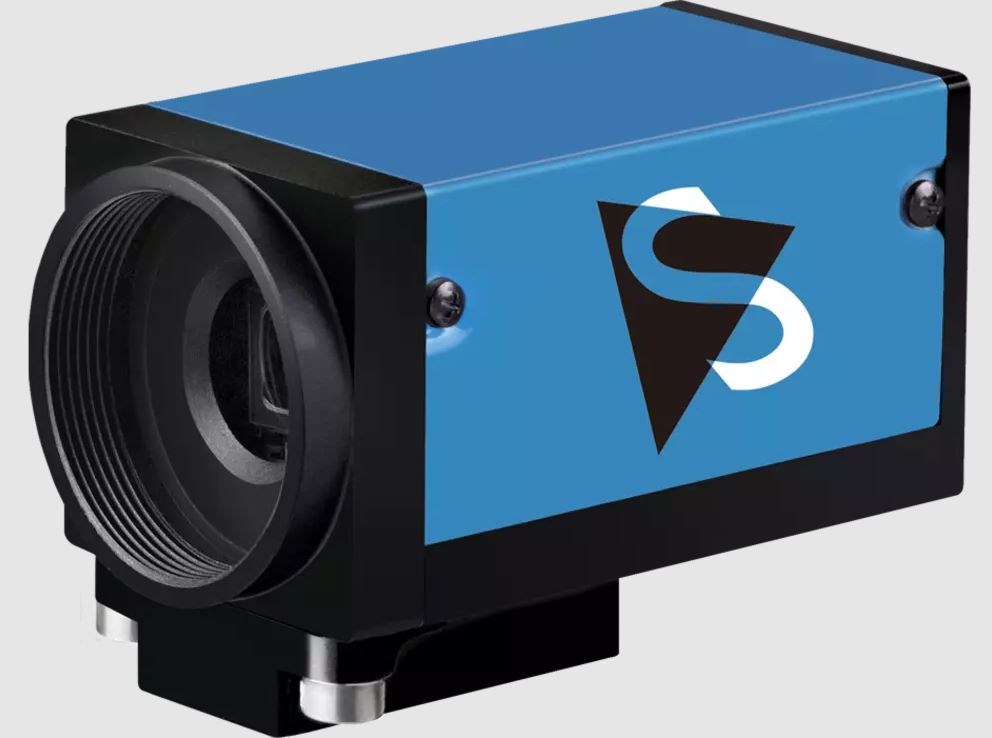

33U Series Color Industrial Camera
USB 3.0 Interface
1/1.1 inch Sony CMOS Pregius S IMX545 Sensor
4,096×3,000 (12.3 MP), up to 30 fps
Pixel Size: H: 2.74 µm, V: 2.74 µm
Global Shutter
Trigger and I/O Inputs
Only 29×29×43 mm
