- Company: Sensors Unlimited Inc.
- Type: InGaAs
- Max. Resolution: 2048MP
- Sensor Width (pixels): 10
- Sensor Height (pixels): 210
- Scan Type & Rate: Line Scan
- Lines (kHz) at Max. Res.: 147
- Interface: Camera Link
- Color/Mono.: Monochrome
- Spectral Range: SWIR
- Applications: Biomedical/Medical, Communications, Industrial, Information Processing, Military, Scientific Research, Other

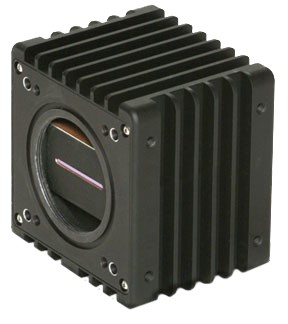

The GL2048R camera delivers line capture rates up to 147,000 lps for SD-OCT while providing high QE in the 1 to 1.6 µm wavelength range. This 2048-pixel camera provides high-resolution imagery with 12-bit depth over the Medium Camera Link® digital interface. It can also be externally triggered over the interface to set both the line rate and exposure time via the frame grabber CC1 signal.
330 Carter Rd.
Princeton, NJ 08540
United States
Phone: +1 609-333-8000
Fax: +1 609-333-8103
