All-in-One Compact Visible Laser

Name: All-in-One Compact Visible Laser
Brand: QD Laser Inc., Laser Device Div.
Rating: 5 (1 reviews)

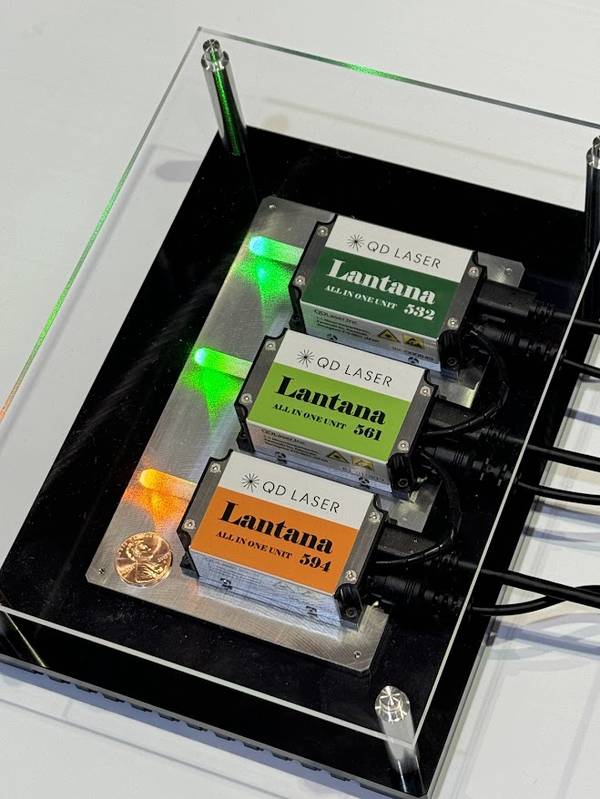

All-in-one compact visible laser - QD Laser, Inc.

Introducing "Lantana" - QD Laser's New Compact Visible Laser for Biomedical Applications.

QD Laser, Inc. (Japan) proudly presents its latest innovation: the all-in-one compact visible laser "Lantana." This plug-and-play, ultracompact box module combines a 532, 561, or 594 nm visible laser with a built-in CW/pulsed driver, offering reduced workspace requirements, simplified setups, and shorter warm-up times.

For more information or to request a quote, contact the QD Laser Sales Group.

Key Features:

Ultracompact design: Combines laser, CW & modulation driver, and temperature control in an ultracompact box module measuring just 38 × 62 × 22.5 mm (53 cc) and weighing 90 g. Its small size minimizes workspace needs.
Plug-and-play simplicity: Operates via USB. Just connect to a laptop and power socket for instant operation. Eliminates issues like complicated setup & long warm-up times. Its user-friendly design is perfect not only for companies, but also universities and laboratories requiring a versatile light source.
High-quality elliptical beam: Emits a Gaussian beam (TEM00 beam) with an elliptical shape, ideal for biomedical applications such as flow cytometry.

Applications:

Flow cytometry
Cell sorting
Laser microscopy
Spectroscopy

Specifications:

Wavelength: 532, 561, 594 nm (New wavelengths of 488, 552, and 588 nm will be available in Q4/2025.)
Output power: 5, 20, 30, 50 mW (Free space output)
Fiber-pigtailed output option available (SMF, PMF, MMF)
Warm-up time: <1min.
Power consumption: Typ. 2.2 W at 50 mW (Typ. 0.8 W on standby), Tc = 25degC

Upcoming Live Demos:

OPIE '25 - Yokohama, Japan (April 2025)
Laser World of Photonics 2025 - Munich, Germany (June 2025)
