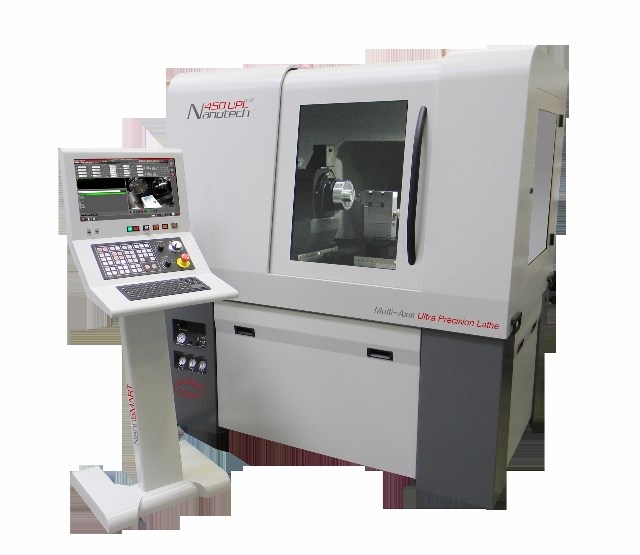

Nanotech 450UPLv2

  • Company: Moore Nanotechnology Systems LLC
  • Type: Diamond Turning
  • Optics Compatibility: Spherical, Aspherical, Cylindrical, Prisms & Wedges, Freeform
  • Diameter / Dimension: 0mm - 450mm
  • Width: 1.8m
  • Height: 2m
  • Length: 1.8m
  • Volts: 208 - 480
  • Amps: 35
  • Programming Resolution: 0.01 nm
  • Feedback Resolution: 8 pm
  • Porous Graphite Air Bearing Spindle: 10,000 rpm
  • X, Z Slide Travels: 350 / 300 mm

Functional Performance Testing:
- Material > High Purity Aluminum
- 75 mm dia, 250 mm Rad Convex Sphere
- Form Accuracy (P-V): 0.125 µm / 75 mm
- Surface Finish (Ra): ≤2 nm
Nanotech 450UPLv2

Moore Nanotechnology Systems LLC
230 Old Homestead Hwy.
Swanzey, NH 03446
United States
Phone: +1 603-352-3030
Fax: +1 603-352-3363
